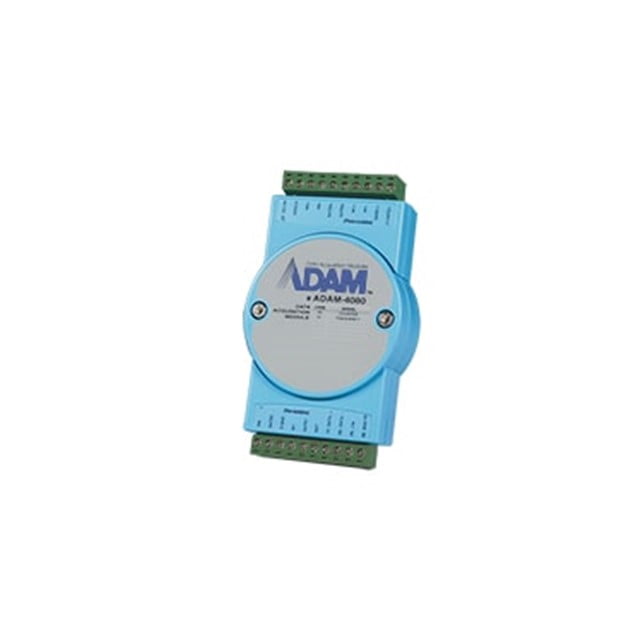

Advantech Counter/Frequency Module (ADAM-4080-E)
- 2ch counter/2ch digital output
- Protocols:Modbus RTU,ASCII
- Watchdog timer to recover the system
- 2500VRMS isolation protection
- Counter frequency up to 50kHZ
Deskripsi
| Category | Attribute | Value |
| General | Connectors | 2 x 10-pin plug-in screw terminal |
| Protocol | ASCII command, Modbus/RTU | |
| Communications | Interface | RS-485 |
| Counter/Encoder Input | Channels | 2 |
| Counting Range | 32-bit | |
| Max. Input Frequency | 50 kHz | |
| Environment | Isolation Voltage | 2,500 VDC |
| Operating Temperature | -10~70 °C (14~158 °F) | |
| Isolated Digital Output | Channels | 2 |
| Output Type | Sink | |
| Output Voltage | 0~30 VDC | |
| Sink Current | 30 mA max./channel | |
| Power Requirements | Input Voltage | 10~30 VDC |
