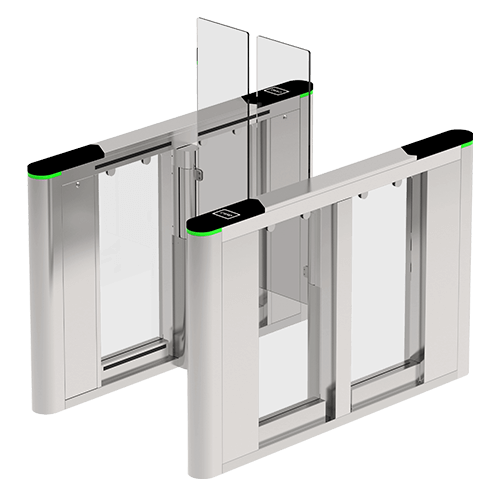

ZKTECO Speed Gates Turnstile with servo motor SBTL8000
Rp263.403.000
Deskripsi
[vc_row][vc_column][vc_column_text css=”” woodmart_inline=”no” text_larger=”no”]
Spesifikasi :
| Item | Specification |
|---|---|
| Model Name | SBTL8000 Series / SBTL8200 Series |
| Audio Indicator | Internal buzzer |
| Visual Indicator | Top LED indicator: Blue = Door closed/standby, Green = Door open, Red = Door closed/alarm |
| Display | N/A |
| Lane Type | SBTL8000: Single Lane / SBTL8200: Dual Lane |
| Lane Width | 660 mm (Standard) / 1000 mm (Optional) |
| Barrier Movement Type | Swing |
| Barrier Material | Transparent acrylic |
| Barrier Size | 715 × 295 mm |
| Motor | Servo motor |
| Movement Speed | Average 0.3–0.6 s per movement (adjustable open/close timing) |
| Movement Accuracy | N/A |
| Clutch | Equipped |
| Lid Material | Full aluminium top cover with tempered glass |
| Lid Options / Authentication | Undermount: QR code (dynamic/static), RFID / Post mount: Facial authentication |
| Chassis Material | SUS304 stainless steel |
| Chassis Colour | Metallic gray |
| IR Sensors | 12 pairs (standard) / 18 pairs (optional) |
| Motherboard Function | System configuration, access mode configuration |
| Motherboard Communication | Fire alarm port (relay) ×1, RS485 port ×1 |
| Controller | Not equipped by default; C3 series / InBio series optional; 3rd-party depends on chassis space |
| Credential Options | Post mount RFID reader (Pro ID Series, KR Series); QR reader QR500 |
| Flow Rate | Facial: 30 persons/min; QR: 30 persons/min; RFID: 35 persons/min |
| Accessibility | Adults, children, elderly (with care), disabled (with care) |
| Power Supply | AC 100–220V, 50/60 Hz |
| Power Rating | 40 VA (standby); 120 VA (operation) |
| Fire Signal | Input for voltage-free contact |
| Noise Level | Less than 60 dB |
| MTTR | 60 minutes |
| MCBF | 10 million |
| Weight | SBTL8000: 220 kg / SBTL8200: 130 kg |
| Dimensions (L×W×H) | 1613 × 134 × 1017.5 mm (IPX4) / 1613 × 134 × 1031.5 mm (IP65) |
| Packing Dimensions | SBTL8000: 1770 × 370 × 1125 mm (2 boxes); SBTL8200: 1 box |
| Operating Temperature | −20°C to 70°C |
| Operating Humidity | 0%–95% RH (non-condensing) |
| Certifications | CE, FCC |
| Ingress Protection | IPX4 water-resistant (standard); IP65 dust & waterproof (optional, +14 mm height) |
| Supported Software | ZKBio CVAccess / ZKBio CVSecurity |
| Safety Features | Power-off unlock, fire alarm door release |
| Security Features | Anti-tailgating, anti-pinch |
| Product Delivery | Pre-assembled for easy installation |
| Application Environment | Indoor / outdoor |
| Site Preparation | Flat and level finished floor (base plate optional) |
| Security Level | Middle |
| Emergency Mode | Swing barrier unlocks automatically |
| Packing Material | Wooden box |
DataSheet SBTL8000[/vc_column_text][/vc_column][/vc_row]
