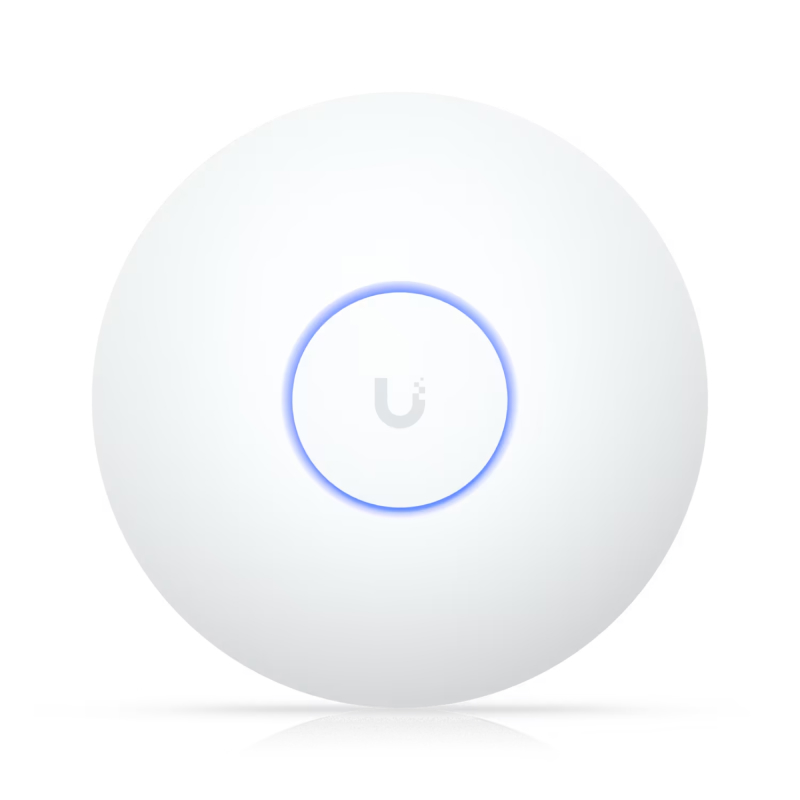

UniFi U7-LR U7 Long-Range
Rp3.821.175
Deskripsi
| Spesifikasi | Detail |
|---|---|
| Model | U7 Long-Range (U7-LR) |
| Dimensions | Ø175.7 × 43 mm (Ø6.9 × 1.7″) |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 5 |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall (Plastic Mounting Plate included) |
| Power Method | PoE |
| Performance – MIMO (5 GHz) | 3 × 3 (DL/UL MU-MIMO) |
| Performance – MIMO (2.4 GHz) | 2 × 2 (DL/UL MU-MIMO) |
| Max. Data Rate (5 GHz) | 4.3 Gbps (BW160) |
| Max. Data Rate (2.4 GHz) | 688 Mbps (BW40) |
| Antenna Gain (5 GHz) | 6 dBi |
| Antenna Gain (2.4 GHz) | 4 dBi |
| Max. TX Power (5 GHz) | 27 dBm |
| Max. TX Power (2.4 GHz) | 26 dBm |
| Supported Data Rates – WiFi 7 (802.11be) | 7.3 Mbps to 4.3 Gbps (MCS0–MCS13 NSS1/2/3, EHT 20/40/80/160) |
| Supported Data Rates – WiFi 6 (802.11ax) | 7.3 Mbps to 3.6 Gbps (MCS0–MCS11 NSS1/2/3, HE 20/40/80/160) |
| Supported Data Rates – WiFi 5 (802.11ac) | 6.5 Mbps to 2.6 Gbps (MCS0–MCS9 NSS1/2/3, VHT 20/40/80/160) |
| Supported Data Rates – WiFi 4 (802.11n) | 6.5 Mbps to 450 Mbps (MCS0–MCS23, HT 20/40) |
| Features – Wireless Meshing | ✓ |
| Features – Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k Radio Resource Management (RRM) | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal – Custom Branding Landing Page | ✓ |
| Captive Hotspot Portal – Voucher Authentication | ✓ |
| Captive Hotspot Portal – Payment-Based Authentication | ✓ |
| Captive Hotspot Portal – External Portal Server Support | ✓ |
| Captive Hotspot Portal – Password Authentication | ✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Max. Power Consumption | 14 W |
| Supported Voltage Range | 42.5—57V DC |
| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 448 g (15.8 oz) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, galvanized steel (SGCC) |
| LEDs | System: White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, SRRC, Anatel: 04071-25-08356 |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 95% non-condensing |
| Software – UniFi Network Requirements | Version 9.1.120 and later |
| Mobile App Requirements | iOS™ version 10.20.2 and later; Android™ version 10.21.7 and later |
