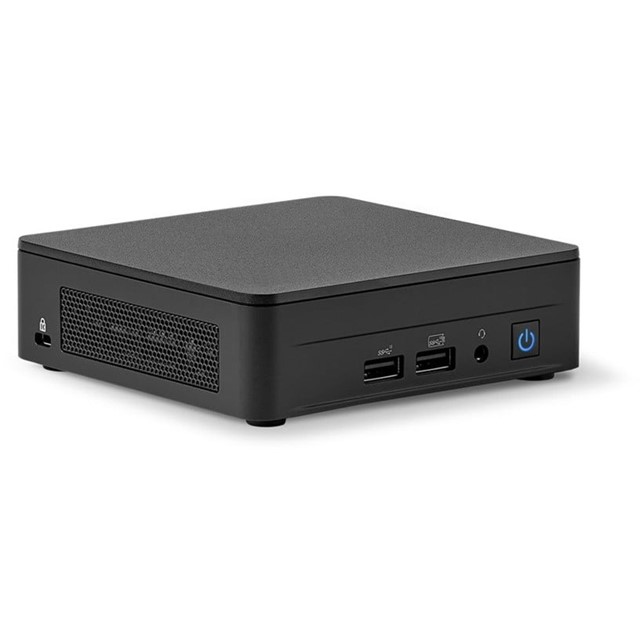

PC with MS Teams Rooms (TEAMS-LOG13L3KV5)
Rp22.500.000
Samsung 85" Crystal UHD DU7000 4K Smart TV (2024)
Rp36.495.468
Schneider switch disconnector, Compact INS125 , 125 A, standard version with black rotary handle, 3 poles
Rp1.536.714
Deskripsi
Specification
| Range | ComPact |
| product name | ComPacT INS |
| Product or component type | Switch disconnector |
| Poles description | 3P |
| network type | AC DC |
| Network frequency | 50/60 Hz |
| [Ie] rated operational current | AC-22A: 125 A AC 50/60 Hz 220/240 V
AC-22A: 125 A AC 50/60 Hz 380/415 V AC-22A: 125 A AC 50/60 Hz 440/480 V AC-22A: 125 A AC 50/60 Hz 500 V AC-22A: 125 A AC 50/60 Hz 660/690 V AC-23A: 125 A AC 50/60 Hz 220/240 V AC-23A: 125 A AC 50/60 Hz 380/415 V AC-23A: 125 A AC 50/60 Hz 440/480 V AC-23A: 125 A AC 50/60 Hz 500 V AC-23A: 80 A AC 50/60 Hz 660/690 V DC-22A: 125 A DC 125 V 2 poles in series DC-23A: 125 A DC 125 V 2 poles in series |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ith] conventional free air thermal current | 125 A at 60 °C |
| [Icm] rated short-circuit making capacity | 154 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz
20 kA switch-disconnector alone 690 V AC at 50/60 Hz |
| [Ue] rated operational voltage | 125 V DC
690 V AC 50/60 Hz |
| Suitability for isolation | Yes |
| Contact position indicator | Yes |
| Visible break | No |
| Pollution degree | 3 |
