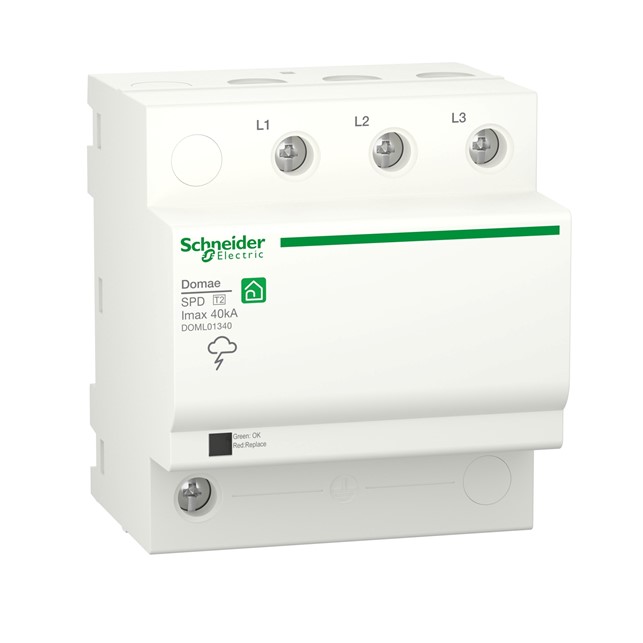

Spesifikasi Schneider Surge Protection Device, Domae, 3P, T2, 40 kA

Main
range of product Domae
Product or component type Surge arrester
Poles description 3P
Earthing system TT
TN-S
TN-C
Device application Residential
Product destination Surge protection device
Complementary
surge arrester class type Type 2
Surge arrester technology MOV + GDT
[Ue] rated operational voltage 230/400 V +/- 10 % AC 50/60 Hz
[In] nominal discharge current 15 kA
[Imax] maximum discharge current 40 kA
[Uc] maximum continuous operating voltage Common mode: 340 V L/PE
Common mode: 260 V N/PE
Differential mode: 340 V L/N
Response time < 25 ns
Maximum [Up] voltage protection level <1.5 kV type 2
[Ut] temporary overvoltage 337 V L/N 5 s withstand
442 V L/PE 5 s withstand
1200 V N/PE 200 ms withstand
1453 V L/PE 200 ms withstand
[Isccr] short-circuit current rating 6 kA
Disconnector device type Circuit breaker Domae MCB 20 A curve C
Local signalling Operating state: flag (green)
Fault indication: flag (red)
Mounting mode Clip-on
Mounting support DIN rail
9 mm pitches 8
Height 81 mm
Width 72 mm
Depth 63 mm
Product weight 335 kg
Colour White
Maximum residual current 25 mA L/PE
Connections – terminals Tunnel type terminals (phase and neutral) 1…25 mm²
Tunnel type terminals (ground) 1…50 mm²
Wire stripping length 11 mm
Tightening torque 2 N.m phase and neutral
3.5 N.m earth
Datasheet-Schneider_Domae SPD_DOML01340.pdf
