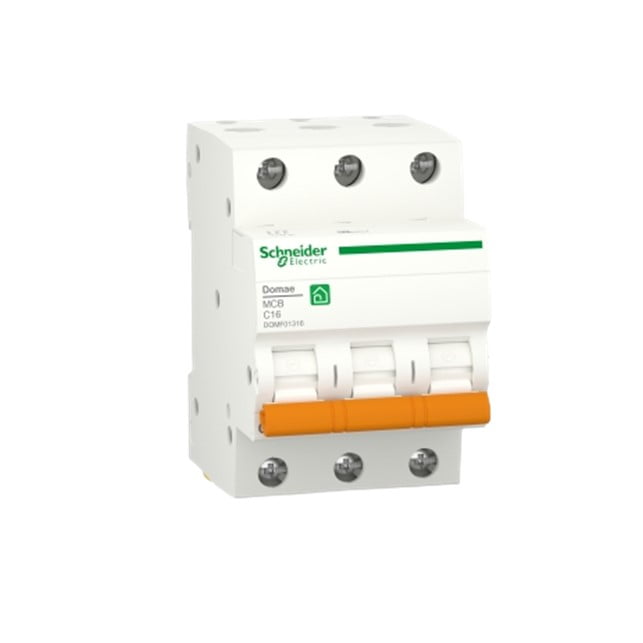

SCHNEIDER MCB 3P 16A DOMF01316 6KA DOMAE - Gambar 1
Click to enlarge
MCB IC60N 2P 50A 6KA SCHNEIDER A9F74250
MCB IC60N 2P 50A 6KA SCHNEIDER A9F74250 Rp613.852
Back to products
BOX MCB 3P OUTBOW
BOX MCB 3P OUTBOW Rp13.875

SCHNEIDER MCB 3P 16A DOMF01316 6KA DOMAE

Rp341.125

MCB 3 POLE, Circuit Breakert

Compare
Add to wishlist
SKU: DOMF01316-GRY Kategori: , , , Tag: ,
Deskripsi

Spesifikasi

Main
range Domae
product or component type Miniature circuit-breaker
device short name Domae MCB
device application Protection
poles description 3P
number of protected poles 3
[In] rated current 16 A
network type AC
trip unit technology Thermal-magnetic
curve code C
breaking capacity Icn 6000 A
quality labels CE
Complementary
network frequency 50/60 Hz
[Ue] rated operational voltage 400 V AC 50/60 Hz
magnetic tripping limit 5…10 x In
control type Toggle
mounting mode Clip-on
mounting support DIN rail
comb busbar and distribution block compatibility YES
9 mm pitches 6
height 81 mm
width 54 mm
depth 71.5 mm
net weight 0.285 kg
colour White
mechanical durability 20000 cycles
electrical durability 10000 cycles
connections – terminals Tunnel type terminals (top or bottom) – 1…25 mm² – rigid
Tunnel type terminals (top or bottom) – 1…16 mm² – flexible
wire stripping length 14 mm for top or bottom connection
tightening torque 2 N.m top or bottom
earth-leakage protection Without
Environment
standards IEC 60898-1
product certifications SNI
IP degree of protection IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
overvoltage category III
tropicalisation 2 conforming to IEC 60068-1
relative humidity 95 % at 55 °C
ambient air temperature for operation -5…60 °C
ambient air temperature for storage -40…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 297.0 g
Package 1 Height 7.5 cm
Package 1 width 1.8 cm
Package 1 Length 8.5 cm
Unit Type of Package 2 CAR
Number of Units in Package 2 4
Package 2 Weight 1.372 kg
Package 2 Height 8 cm
Package 2 width 8.5 cm
Package 2 Length 22.5 cm
Unit Type of Package 3 S03
Number of Units in Package 3 48
Package 3 Weight 14.313 kg
Package 3 Height 30 cm
Package 3 width 30 cm
Package 3 Length 40 cm

datasheet DOMF01316-GRY.pdf
