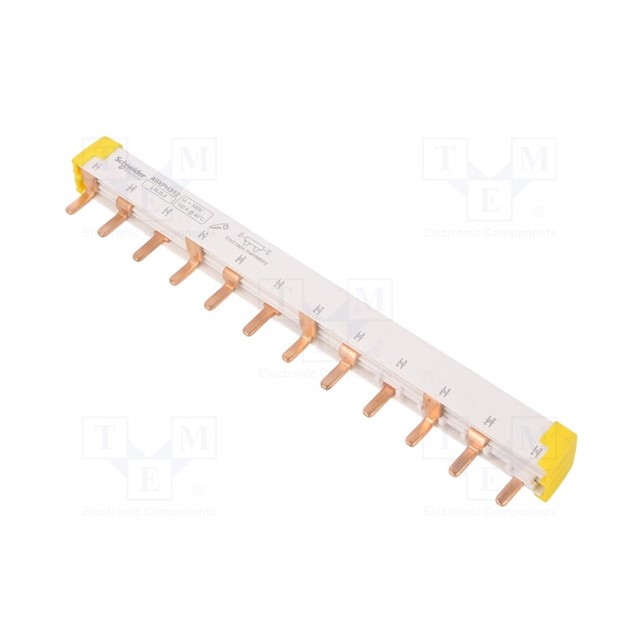

Schneider Acti 9 – comb busbar – 3L – 18 mm pitch – 12 modules – 100A
Rp332.034
Deskripsi
Spesifikasi A9XPH312
| Range | Acti9 |
|---|---|
| Product or component type | Comb busbar |
| Mounting mode | Horizontal |
| Accessory / separate part category | Connection accessory |
| Lines description | 3L |
| Length in 18 mm modules | 12 |
| Number of ways | 4 ways 3 L |
|---|---|
| Poles configuration for 1 way | 1 x 3P |
| Connection pitch | 18 mm |
| Connector type | Tooth |
| Distance between way | 54 mm |
| Marking | L1 L2 L3 |
| insulation | Insulated |
| Device presentation | Cuttable |
| [Ie] rated operational current | 100 A at 40 °C |
| [Ue] rated operational voltage | 415 V AC |
| [Ui] rated insulation voltage | 500 V AC conforming to IEC 61439-2 |
| Mounting location | Top or bottom on tunnel type terminals Top or bottom on double terminal |
| 9 mm pitches | 24 |
| Width | 220 mm |
| Colour | White (RAL 9003) |
| Range compatibility | Acti 9 (Acti9 iC60) Acti 9 (Acti9 iK60) Acti 9 (Acti9 iID) Acti 9 (Acti9 iID K) Acti 9 (Acti9 iSW) Acti 9 (Acti9 iSW-NA) Multi9 (Multi9 C60) |
| Standards | IEC 60947-7-1 IEC 61439-2 |
|---|---|
| Fire resistance | 960 °C ( 30 s ) conforming to IEC 60695-2-1 |
| Pollution degree | 3 conforming to IEC 60947-7-1 |
| IP degree of protection | IP20 with end-pieces and tooth covers |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3 cm |
| Package 1 Width | 1.6 cm |
| Package 1 Length | 21.2 cm |
| Package 1 Weight | 108 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 6 cm |
| Package 2 Width | 8.6 cm |
| Package 2 Length | 24.8 cm |
| Package 2 Weight | 607 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 10.19 kg |
| Warranty | 12 months |
|---|
