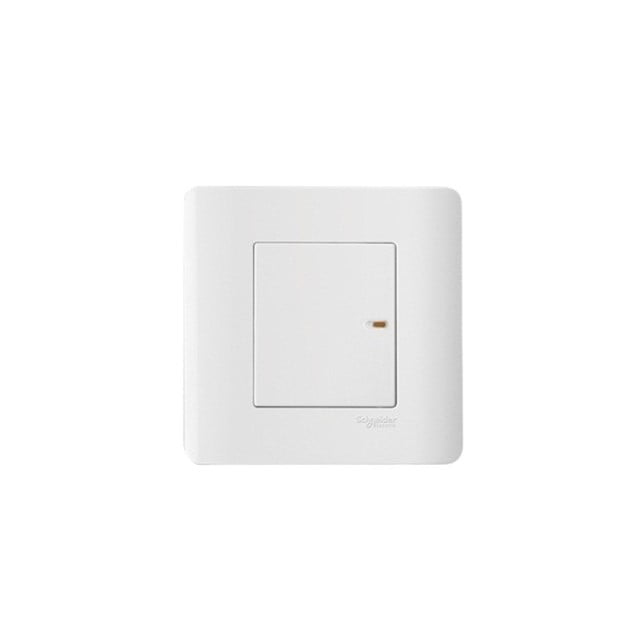

SAKLAR SINGLE ZENCELO SCHNEIDER E8431_1_WE 1G 1W WHITE
Rp67.536
Deskripsi
Spesifikasi
| range | ZENcelo |
|---|---|
| product or component type | Switch |
| load type | Inductive Resistive Fluorescent lamp Incandescent lamp |
| colour tint | White |
| cover frame colour tint | White |
| device mounting | Flush Surface |
|---|---|
| switch function | 1-way |
| rated current | 20 A at 250 V AC 50/60 Hz |
| local signalling | Mechanical indicator (amber) |
| number of gangs | 1 gang |
| material | Polycarbonate + GF 20 %: grid plate Polycarbonate: base Polycarbonate: cover Polycarbonate: surround |
| connections – terminals | Brass rod terminals |
| width | 87 mm |
| height | 87 mm |
| depth | 31 mm |
| ambient air temperature for operation | -5…35 °C |
|---|---|
| relative humidity | 0…95 % |
| environmental characteristic | No UV resistant |
| operating altitude | 2000 m |
| standards | EN 60669-1 SS 227-1 IEC 60669-1 GB 16915.1 MS IEC 60669-1 |
| Package 1 Weight | 67.030 g |
|---|---|
| Package 1 Height | 1.000 cm |
| Package 1 width | 1.000 cm |
| Package 1 Length | 1.000 cm |
