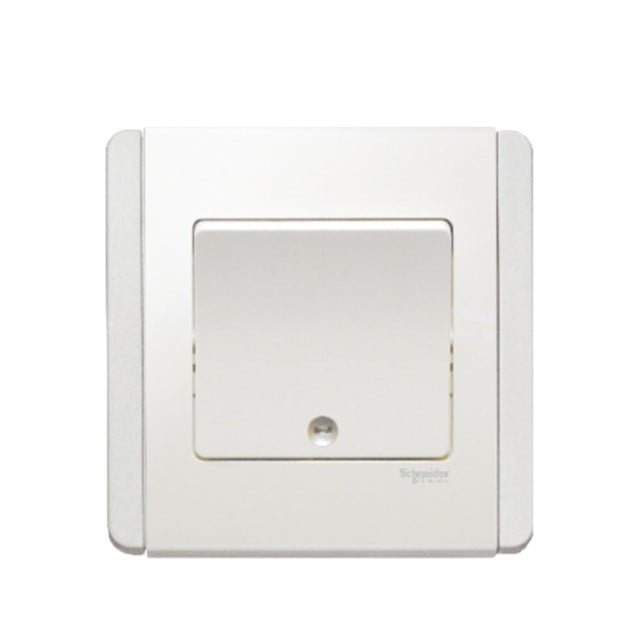

SAKLAR SINGLE SCHNEIDER NEO E3031V1_EWWW 1G 1W LED WHITE
Rp100.236
Deskripsi
Spesifikasi
| range | Neo |
|---|---|
| product or component type | Control switch |
| device application | Control |
| wiring device mounting | Surface Flush |
| switch function | 1-way |
| load type | Fluorescent lamp Incandescent lamp Inductive Resistive |
| bulb type | LED (white) |
| colour tint | White |
| rated current | 10 AX at 250 V AC 50/60 Hz |
|---|---|
| number of gangs | 1 gang vertical |
| material | Brass: metal parts Polycarbonate: plastic part Steel: metal parts |
| clamping connection capacity | 3 x 2.5 mm² for solid cable(s) 3 x 2.5 mm² for stranded cable(s) 4 x 1.5 mm² for solid cable(s) 4 x 1.5 mm² for stranded cable(s) |
| connections – terminals | Pillar terminals |
| width | 87 mm |
| height | 87 mm |
| embedding depth | 23.5 mm |
| depth | 36 mm |
