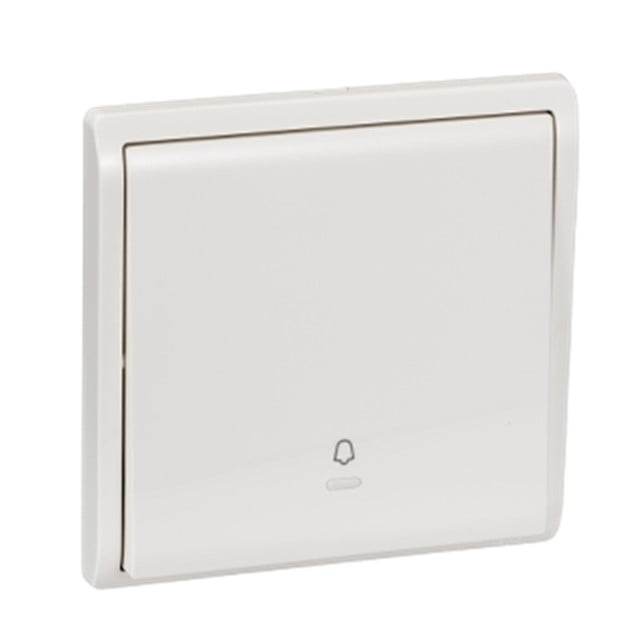

SAKLAR BELL PIENO E8231BPL1_WE 1G WHITE SCHNEIDER
Rp1.667.803
Deskripsi
Spesifikasi
| range | Pieno |
|---|---|
| product or component type | Switch |
| device application | Control |
| switch application | Bell |
| load type | Resistive |
| cover frame colour tint | White |
| device mounting | Flush Surface |
|---|---|
| wiring device mounting | Surface Flush |
| switch function | Momentary |
| rated current | 10 A at 250 V AC 50 Hz |
| local signalling | Fluorescent (white) |
| number of gangs | 1 gang |
| material | Polycarbonate: surround Polycarbonate: grid plate |
| connections – terminals | Pillar terminals |
| clamping connection capacity | 2 x 1.5 mm² for stranded cable(s) 2 x 2.5 mm² for solid cable(s) |
| embedding depth | 23 mm |
| width | 87 mm |
| height | 87 mm |
| depth | 23 mm |
| ambient air temperature for operation | -5…40 °C |
|---|---|
| relative humidity | 0…95 % |
| standards | SS 227-1 IEC 60669-1 MS IEC 60669-1 GB 16915.1 BS EN 60669-1 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 89.64 g |
| Package 1 Height | 3.6 cm |
| Package 1 width | 8.7 cm |
| Package 1 Length | 8.7 cm |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 1600 |
| Package 2 Weight | 160419.2 g |
| Package 2 Height | 86.0 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 80 |
| Package 3 Weight | 7170.96 g |
| Package 3 Height | 21.0 cm |
| Package 3 width | 31.0 cm |
| Package 3 Length | 50.0 cm |
