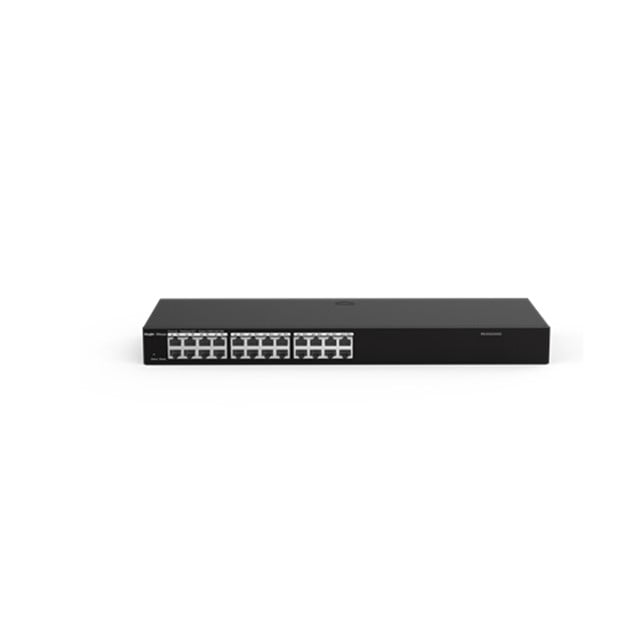

Reyee RG-ES224GC Cloud Managed Layer 2 PoE Switches for IP Surveillance
Rp2.587.410
| Model |
RG-ES205GC |
RG-ES208GC |
RG-ES216GC |
RG-ES224GC |
|
Switching capacity |
10Gbps |
16Gbps |
32Gbps |
48Gbps |
|
Switching Cache |
1Mbit |
1.5Mbit |
4.1Mbit |
4.1Mbit |
|
Package forwarding rate |
7.4Mpps |
11.9Mpps |
23.8Mpps |
35.7Mpps |
|
Ports |
5 10/100/1000 Base-T ports |
8 10/100/1000 Base-T ports |
16 10/100/1000 Base-T ports |
24 10/100/1000 Base-T ports |
|
PoE Standard |
N/A |
|||
|
PoE Power Budget |
N/A |
|||
|
Speed / Duplex mode |
Auto / Half / Full duplex Speed auto / 10/ 100 /1000 |
|||
|
MAC address |
2K |
4K |
8K |
8K |
|
Maximum Number of VLANs |
16 |
|||
|
Allowed VLAN ID |
1 ~ 4094 |
|||
|
Port-based VLAN |
Support |
|||
|
Flow Control |
Support |
|||
|
Loop Protection |
Support |
|||
|
Unknown Unicast Suppression |
Support |
|||
|
Multicast / Broadcast Storm Suppression |
Support |
|||
|
Mirroring |
Many-to-One Mirroring |
|||
|
Port Isolation |
Support |
|||
|
Cable Testing |
Support |
|||
|
ICMP Ping |
Support |
|||
|
DNS |
DNS Client |
|||
|
Telnet |
Support |
|||
|
MACC |
Support |
|||
|
Port Surge |
Common mode: 4KV |
|||
|
Electrostatic Discharge |
Air discharge: 6KV |
|||
|
Power Consumption |
≤ 3W |
≤ 4W |
≤ 12W |
≤ 14W |
|
Power supply |
External power adapter |
External power adapter |
Built-in power supply |
Built-in power supply |
