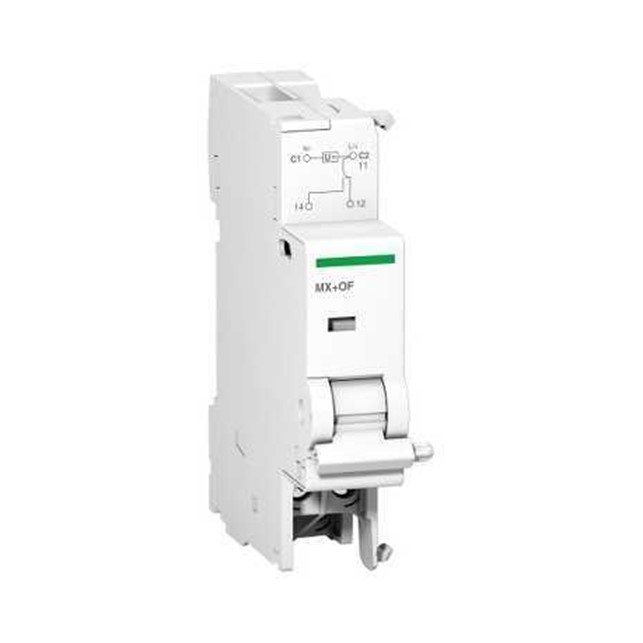

MX Shunt Trip MX plus 1 OF 24Vac dc
Rp715.584
Deskripsi
| range of product | Acti9 |
|---|---|
| Product or component type | Shunt trip release with OC contact |
| device short name | MX + OF |
| Signal contacts composition | 1 C/O |
| [Uc] control circuit voltage | 12…24 V AC 50/60 Hz 12…24 V DC |
| 9 mm pitches | 2 |
| Range compatibility | Acti 9 (Acti9 iDPN) Acti 9 (Acti9 C120) Acti 9 (Acti9 C40) Acti 9 (Acti9 C60H-DC) Acti 9 (Acti9 C60NA-DC) Acti 9 (Acti9 C60PV-DC) Acti 9 (Acti9 DPN Vigi) Acti 9 (Acti9 DT40) Acti 9 (Acti9 DT60) Acti 9 (Acti9 ID C40) Acti 9 (Acti9 IDc) Acti 9 (Acti9 ITG40) Acti 9 (Acti9 ID) Acti 9 (Acti9 DPN) |
|---|---|
| Local signalling | Action indicator |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| Comb busbar and distribution block compatibility | Top: YES |
| Height | 82.5 mm |
| Width | 18 mm |
| Depth | 73.5 mm |
| Product weight | 65 g |
| Colour | White |
| Connections – terminals | Clamp terminal – 1 cable(s) 2.5 mm² – flexible |
| Wire stripping length | 9 mm |
| Tightening torque | 1 N.m |
| Compatibility code | MX + OF |
