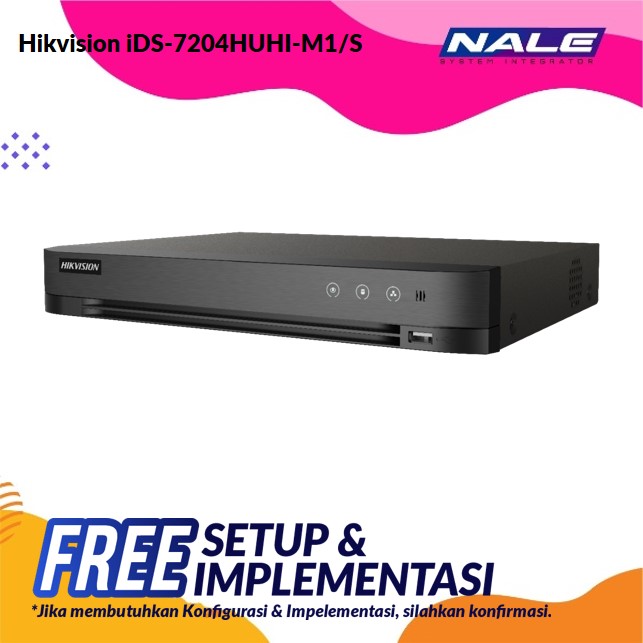

Hikvision 4-ch 5 MP 1U H.265 AcuSense DVR (iDS-7204HUHI-M1/S)
Rp2.369.077
- 4 channels and 1 HDD 1U AcuSense DVR
- False alarm reduction by human and vehicle target classification based on deep learning
- Efficient H.265 pro+ compression technology
- Encoding abilty up to 8 MP lite @ 15 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 8 network cameras can be connected.
Deskripsi Hikvision 4-ch 5 MP 1U H.265 AcuSense DVR (iDS-7204HUHI-M1/S)
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | Main stream:
8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4. Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Dual Stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bit Rate | 64 Kbps |
| Video And Audio | |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Synchronous Playback | 16-ch |
| IP Video Input | 2-ch (up to 6-ch)
Up to 8 MP resolution Enhanced IP mode on: 4-ch (up to 8-ch), each up to 4 Mbps Support H.265+/H.265/H.264+/H.264 IP cameras |
| HDTVI Input | 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
*: The 8 MP signal input is only available for channel 1. |
| HDCVI Input | 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| CVBS Input | PAL/NTSC |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Analog Video Input | 4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| AHD Input | 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Network | |
| Remote Connections | 32 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| Auxiliary Interface | |
| Capacity | Up to 10 TB capacity for each disk |
| Serial Interface | RS-485 (half-duplex) |
| USB Interface | Front panel: 1 × USB 2.0
Rear panel: 1 × USB 2.0 |
| Alarm In/Out | N/A |
| SATA | 1 SATA interface |
| General | |
| Consumption(Without HDD) | ≤ 10 W |
| Working Humidity | 10% to 90% |
| Power Supply | 12 VDC |
| Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Dimensions(W × D × H) | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
≤ 1.16 kg (2.6 lb) |
Karena padatnya alur keluar-masuk barang, para pembeli wajib :
KONFIRMASI ketersediaan stok barang terlebih dahulu sebelum membeli.
CHAT kami untuk update stok maupun kebutuhan URGENT.
MELAYANI penjualan online maupun offline.
JIKA membutuhkan Konfigurasi & Implementasi, silahkan konfirmasi. (Maksimal 30 hari Setelah Pembelian)
Chat pada hari kerja : Senin – Jumat | jam 08.30 – 16.00
PT Nale System Integrator
Penyedia layanan IT TERBAIK dan TERLENGKAP di kota anda.
Didukung team profesional bersertifikasi dan berdedikasi.
Dipercaya oleh berbagai Corporate dan Institusi.
TERIMA KASIH
