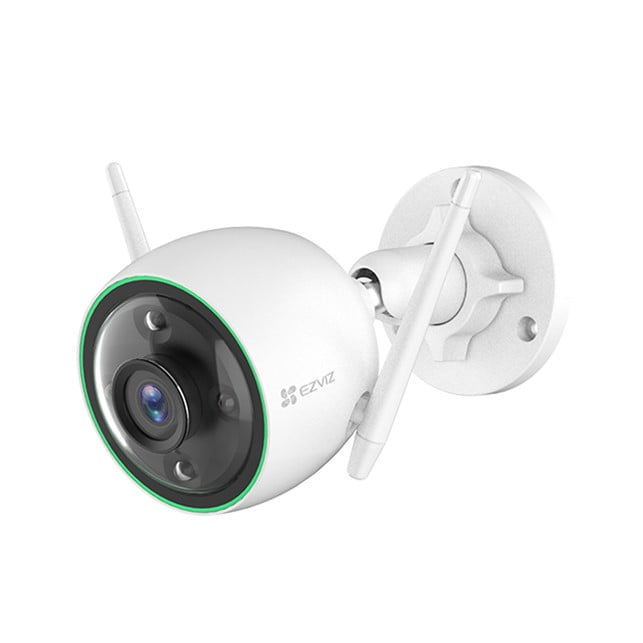

Deskripsi
| Kamera | ||
|---|---|---|
| Sensor Gambar | Pemindaian Progresif CMOS 1/2.7” | |
| Kecepatan Rana | Rana adaptif mandiri | |
| Lensa | 2.8 mm @ F2.0, sudut pandang: 104° (Horizontal), 125° (Diagonal) 4 mm @ F2.0, sudut pandang: 86° (Horizontal), 102° (Diagonal) | |
| Dudukan Lensa | M12 | |
| Siang & Malam | Cut filter IR dengan pengalihan otomatis | |
| DNR | 3D DNR | |
| WDR | WDR Digital | |
| Kompresi | ||
| Kompresi Video | H.264 / H.265 | |
| Laju Bit Video | Ultra-HD; HD; Standar. Laju bit adaptif. | |
| Gambar | ||
| Resolusi Maks. | 1920 × 1080 | |
| Laju Bingkai | Maks: 30 fps; Adaptif mandiri selama transmisi jaringan | |
| BLC | Mendukung | |
| Antarmuka | ||
| Penyimpanan | Slot kartu Micro SD (maks. 256 GB) | |
| Jaringan Berkabel | RJ45 × 1 (10 M/100 M Port Ethernet adaptif mandiri) | |
| Jaringan | ||
| Alarm Pintar | Deteksi manusia dengan dukungan AI | |
| Penautan Wi-Fi | Penautan AP | |
| Protokol | Protokol eksklusif EZVIZ cloud | |
| Protokol Antarmuka | Protokol eksklusif EZVIZ cloud | |
| Laju Bit Maks. | 2 Mbps | |
| Wi-Fi | ||
| Standar | IEEE802.11 b/g/n | |
| Jangkauan Frekuensi | 2,4 GHz ~ 2,4835 GHz | |
| Lebar Pita Saluran | Mendukung 20 MHz | |
| Keamanan | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK | |
| Laju Transmisi | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 144 Mbps | |
| Umum | ||
| Kondisi Pengoperasian | Suhu: -30°C hingga 60°C (-22°F hingga 140°F), kelembapan: 95% atau kurang (tanpa kondensasi) | |
| Catu Daya | DC 12V / 1A | |
| Konsumsi Daya | Maks. 7W | |
| Tingkat IP | IP67 | |
| Jarak Penglihatan Malam (Mode Penglihatan Malam Hitam/Putih) | Maks. 30 meter (98,43 kaki) | |
| Penerimaan Audio | Maks. 5 meter (16,4 kaki) | |
| Dimensi | 75,5 × 75,5 × 155 mm (2,97 × 2,97 × 6,10 inci) | |
| Dimensi Kemasan | 227 × 100 × 92 mm (8,94 × 3,94 × 3,62 inci) | |
| Berat | 422 g (0,93 lb) | |
