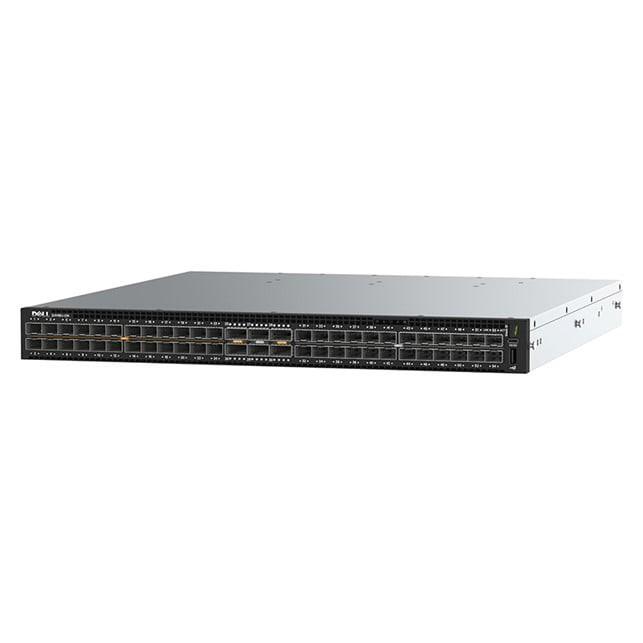

Dell EMC Switch S4148U-ON
Rp383.482.800
Deskripsi
| S4148U-ON | |
| Ports | 48xSFP+ |
| 2xQSFP+ | |
| 4xQSFP28 | |
| Unified port | Support |
| Max 10GbE density | 72 (48 SFP+ and 24 via QSFP28 breakout) |
| Max 25GbE density | 16 via QSFP28 breakout |
| Max 40GbE density | 6 |
| Max 50GbE density | 8 |
| Max 100GbE density | 4 |
| Max FC 8G/16G ports (oversubscribed) | 40 |
| Max FC 16G line rate | 28 |
| Max FC 32G ports (oversubscribed) | 16 |
| Max FC 32G line rate | 8 |
| Switching capacity | 1.76Tbps |
| Throughput | 1320Mpps |
| LRM optics support | No |
| 1588v2 PTP timing | Yes |
| Max power consumption | 460W |
| Typical operating power | 300W |
| Number of fan trays | 4 |
| Fans per fan tray | 2 |
| Weight | 20.52 lbs |
| (9.31 kg) | |
| Max thermal output | 1,568 BTU/h |
