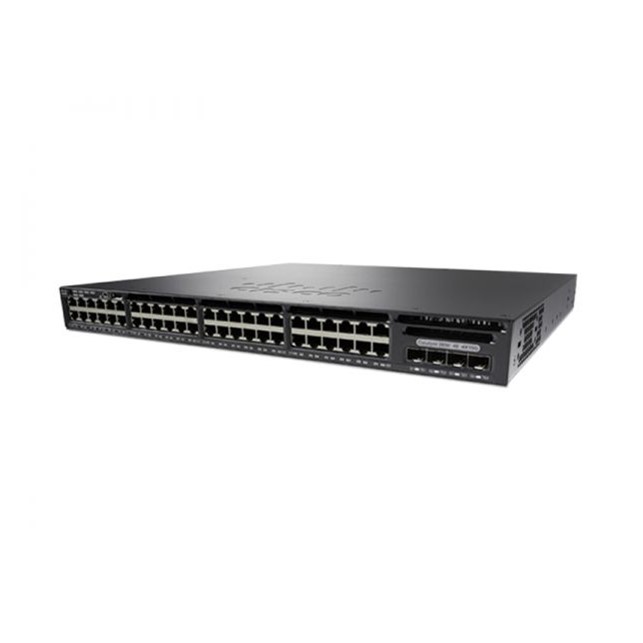

Cisco Catalyst 3650 48 Port Data 4x10G Uplink IP Base (WS-C3650-48TQ-S)

WS-C3650-48TQ-S Specification

Enclosure type

Rack-mountable – 1U

Ports

48 x 10/100/1000 + 4 x 10G SFP+

Network management Interface

· Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
· Management console port: RJ-45-to-DB9 cable for PC connections

Available PoE Power

None

Switching Capacity

176Gbps

Maximum stacking number

9

Stack Bandwidth

160Gbps

Forwarding Performance

130.95Mpps

FNF entries

48000

Maximum VLANs IDs

4,094

MAC Address Table Size

32K

CPU

Multicore CPU

RAM

4 G

Flash Memory

2 G

Wireless

Number of AP per switch/stack

50

Number of wireless clients per switch/stack

1000

Total number of WLANs per switch

64

Wireless bandwidth per switch

up to 40Gbps

Supported Aironet AP series

3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Expansion Slot(s)

 power redundant slot

Accessory & Rack Moubt Kits

· ACC-KIT-T1: Accessory kit
· RACK-KIT-T1: Rack mount kit
· 4PT-KIT-T1:Extension rails and brackets for four-point mounting

Stacking module & cable

· C3650-STACK-KIT: Stack Module
· STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length
· STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length
· STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length

Power supply

PWR-C2-1025WAC

Power Device

Power supply – redundant – plug-in module

Power Redundancy

optional

Voltage range (Auto)

100V-240V

Power Consumption of standalone (in Watts)

96.7 (max)
