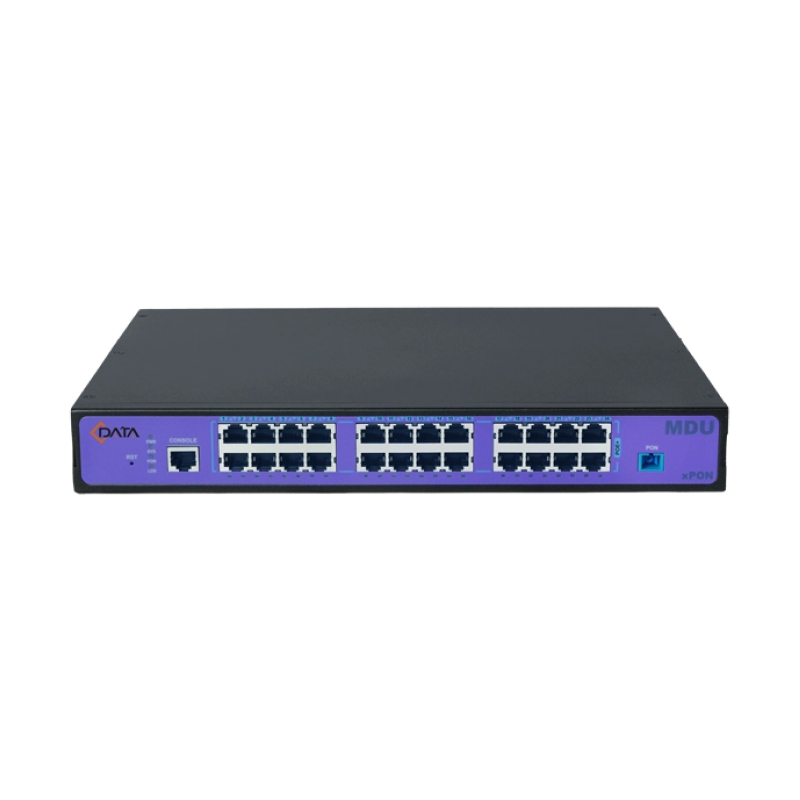

C-DATA 24GE POE XPON ONU (MDU) (FD5024BF)
Rp6.256.238
Deskripsi
| Model | FD5024BF |
| User Port (LAN) | 24x 10/100/1000Mbps adaptive Ethernet port |
| Full/half duplex | |
| Auto MDI/MDI-X | |
| Indicators | PWR / PON / SYS / LOS / LAN / POE / POE+LAN |
| PON Mode | EPON : 1000BASE-PX20+ symmetric |
| GPON : Class B+/Class C+ | |
| PON Rate | EPON : 1.25Gbps (downstream/upstream) |
| GPON : 2.488Gbps/1.244Gbps (downstream/upstream) | |
| Wavelength | Transmit : 1310nm |
| Receiver : 1490nm | |
| Receiving sensitivity | EPON : -27dBm |
| GPON : -28dBm | |
| Saturated power | EPON : -3dBm |
| GPON : -8dBm | |
| Transmitting power | EPON : 0 ~ 4dBm |
| GPON : 0.5 ~ 5dBm | |
| Power Supply | Support PoE/PoE+(PSE) |
| PSE output voltage : 48V DC | |
| PoE output power : 360W | |
| Single port maximum output power : 30W | |
| Maximum machine power consumption : 430W | |
| Working temperature | -10 to 50ºC |
| Ambient humidity | 10% ~ 90% (Non-condensing) |
