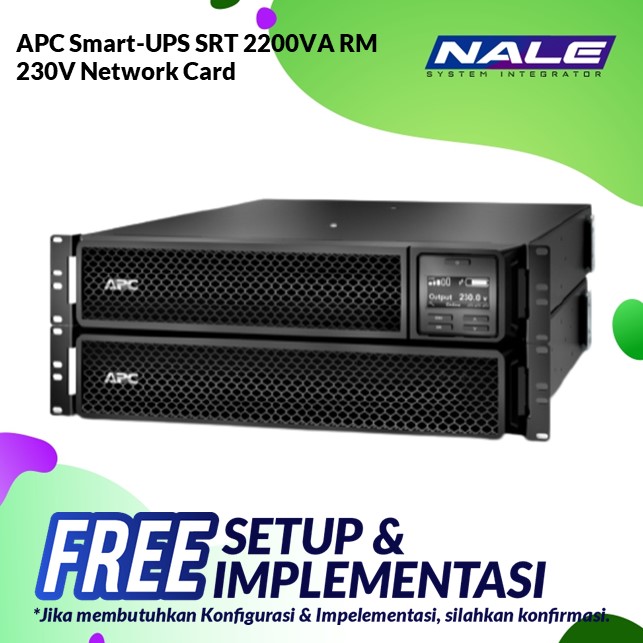

APC Smart-UPS SRT 2200VA RM 230V Network Card (SRT2200RMXLI-NC)
Rp32.841.792
- PF: 0.9
- Back up time Full Load: 3.9 min (1980 watt)
- Output power capacity : 1.98kWatts / 2.2kVA
- Rack Height : 2U
- Output Connections :
(8) IEC 60320 C13 (Battery Backup)(2) IEC Jumpers (Battery Backup)(2) IEC 60320 C19 (Battery Backup)
- Nominal Output Voltage : 230V
- Nominal Input Voltage : 230V
- Input Connections : BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P
- Includes : CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Network management card, Rack mounting brackets, Rack mounting.
Deskripsi
Deskripsi APC Smart-UPS SRT 2200VA RM 230V Network Card (SRT2200RMXLI-NC)
| Output | |
| Max Configurable Power (Watts) | 1.98kWatts / 2.2kVA |
| Output Voltage Distortion | Less than 2 % |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz Sync to mains |
| Other Output Voltages | 220, 240 |
| Load Crest Factor | 3 : 1 |
| Topology | Double conversion online |
| Waveform type | Sine wave |
| Bypass | Built-in bypass |
| Input | |
| Input frequency | 40 – 70 Hz Auto-sensing |
| Input voltage range for main operations | 100 – 275 Adjustable (half load), 160 – 275V |
| Number of Power Cords | 1 |
| Other Input Voltages | 220, 240 |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Included Battery Modules | 1 |
| Typical recharge time | 3hour(s) |
| Nominal Battery Voltage | 72 V |
| Replacement Battery | APCRBC141 |
| RBC Quantity | 1 |
| Expected Battery Life (years) | 3 – 5 |
| Battery Charge Power (Watts) | 112 Watts |
| Communications & Management | |
| Interface Port(s) | RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB |
| Control panel | Multifunction LCD status and control console |
| Audible Alarm | Audible and visible alarms prioritized by severity |
| Emergency Power Off (EPO) | Yes |
| Available SmartSlot™ Interface Quantity | 1 |
| Pre-Installed SmartSlot™ Cards | AP9631 |
| Surge Protection and Filtering | |
| Surge energy rating | 340Joules |
| Physical | |
| Maximum Height | 85MM, 8.5CM |
| Maximum Width | 432MM, 43.2CM |
| Maximum Depth | 584MM, 58.4CM |
| Net Weight | 25.0KG |
| Conformance | |
| Approvals | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE |
| Standard warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
