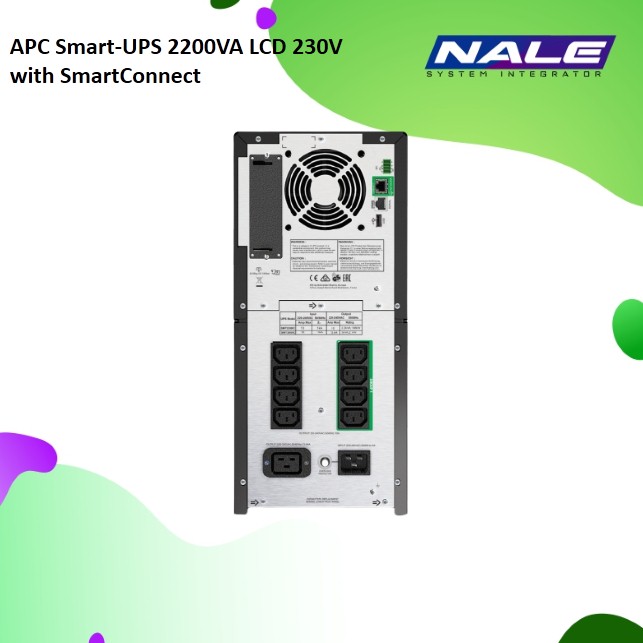

APC Smart-UPS 2200VA LCD 230V with SmartConnect (SMT2200IC)
Rp19.353.960
- Output power capacity 1.98kWatts / 2.2kVA
- Output Connections
(1) IEC 320 C19 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
(8) IEC 320 C13 (Battery Backup) - Nominal Output Voltage 230V
- Nominal Input Voltage 230V
- Input Connections BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
- PF : 0.9
- Back up time Full Load : 8,7 min (1980watt)
Deskripsi
Deskripsi APC Smart-UPS 2200VA LCD 230V with SmartConnect (SMT2200IC)
Spesifikasi singkat:
| Output | |
| Max Configurable Power (Watts) | 1.98kWatts / 2.2kVA |
| Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
| Output Voltage Distortion | Less than 5 % |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz Sync to mains |
| Other Output Voltages | 220, 240 |
| Topology | Line interactive |
| Waveform type | Sine wave |
| Transfer Time | 6 ms typical : 10 ms maximum |
| Input | |
| Input frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
| Input voltage range for main operations | 151 – 302 Adjustable, 160 – 286V |
| Number of Power Cords | 1 |
| Other Input Voltages | 220, 240 |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Typical recharge time | 3hour(s) |
| Replacement Battery | RBC55 |
| Expected Battery Life (years) | 3 – 5 |
| RBC Quantity | 1 |
| Battery Charge Power (Watts) | 260 Watts |
| Communications & Management | |
| Interface Port(s) | RJ-45 Serial, SmartSlot, USB |
| Control panel | Multifunction LCD status and control console |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Emergency Power Off (EPO) | Yes |
| Available SmartSlot™ Interface Quantity | 1 |
| Surge Protection and Filtering | |
| Surge energy rating | 365Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Physical | |
| Maximum Height | 435MM, 43.5CM |
| Maximum Width | 197MM, 19.7CM |
| Maximum Depth | 544MM, 54.4CM |
| Net Weight | 50.2KG |
| Conformance | |
| Approvals | CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE |
| Standard warranty | 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available |
Karena padatnya alur keluar-masuk barang, para pembeli wajib :
KONFIRMASI ketersediaan stok barang terlebih dahulu sebelum membeli.
CHAT kami untuk update stok maupun kebutuhan URGENT.
MELAYANI penjualan online maupun offline.
JIKA membutuhkan Konfigurasi & Impelementasi, silahkan konfirmasi.
Chat pada hari kerja : Senin – Jumat | jam 08.30 – 16.00
PT Nale System Integrator
Penyedia layanan IT TERBAIK dan TERLENGKAP di kota anda.
Didukung team profesional bersertifikasi dan berdedikasi.
Dipercaya oleh berbagai Corporate dan Institusi.
TERIMA KASIH
