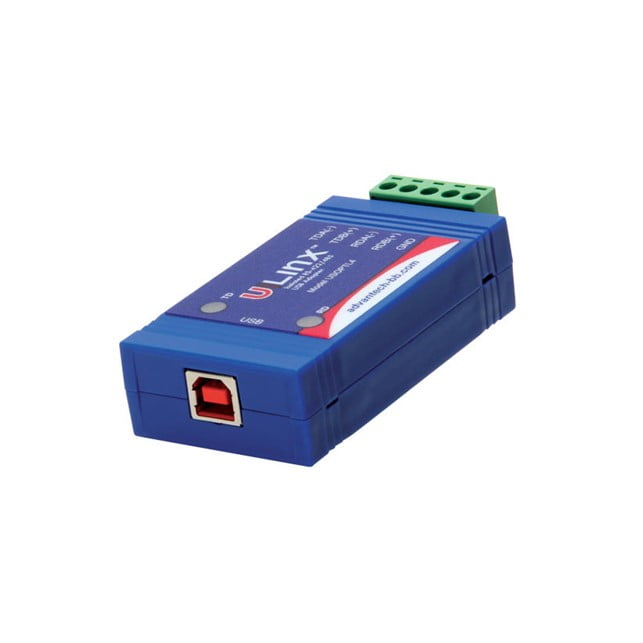

Advantech ULI-341TC – USB to RS-422/485 (Terminal Block) Isolated Converter (BB-USOPTL4)

2000 V RMS optical isolation
15KV ESD surge protection
Adds a COM port to your PC
LEDs for transmit and receive lines
USB 1.0, 1.1 and 2.0 compatible (12 Mbps)
Automatic configuration on Windows 2000, XP, Vista. 7 (32/64 bit), 8 (32/64 bit)
No power supply required (powered from USB bus)

Deskripsi

ategory	Attribute	Value
General	Isolation	2kV
	Mounting	Inline
	Power	Bus Powered
	Serial Connector	Terminal Block
	Serial Port Count	1
	Serial Type	RS-422, RS-485
	Technology	USB
	Temperature	0 to 70C
Power	Power Input (USB)	Port-Powered from USB host (5 VDC)
Protection	Isolation	2,000 VDC
Serial Communication	Maximum Serial Transmission Speed	460.8 Kbps
	Serial Port Connector Type	Terminal block
	Serial Port Number	1
	Serial Standard	RS-422 / RS-485
Environment	Temperature (Operating Range)	0 ~ 70°C (32 ~ 158°F)
Accessory General	Mounting	Inline
Upstream USB Port	Connector Type	Type B (Female) High Retention
	Maximum Transfer Rate	Full-Speed (12 Mbps)
	Port Number	1
	Standard	USB 2.0
