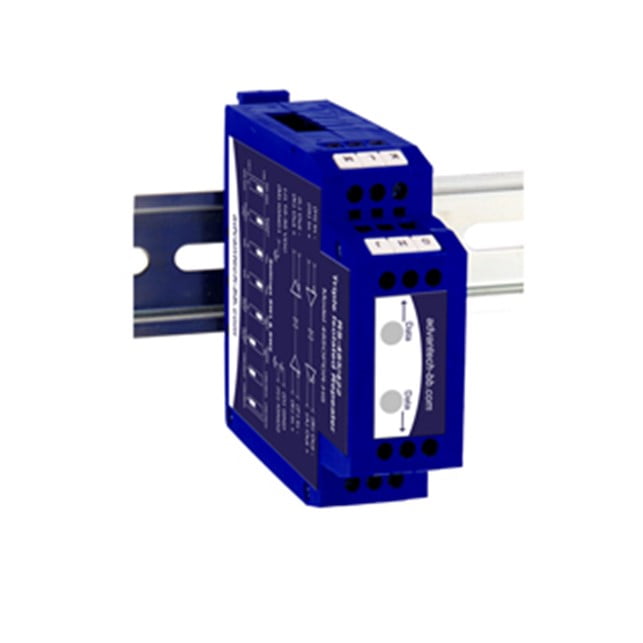

Advantech ULI-234TCH – RS-422/485 Isolated Repeator, high speed, DIN Rail (BB-485OPDR-HS)

2 kV Isolation
IEC Level 2, ± 4 kV Contact ESD Protection, IEC Level 3, ± 8 kV air ESD Protection
1.5 Mbps Data Rate
-40 to 80°C Operating Temperature
NEMA TS2

Deskripsi

Category	Attribute	Value
General	Isolation	2kV
General	Mounting	DIN
General	Power	10-30VDC
General	Serial Type	RS-422/485
General	Technology	Serial
General	Temperature	-40 to 80C
Power	Power Input (DC)	10 ~ 30 VDC
Protection	Isolation	2,000 VDC
Protection	Surge Protection	600W
Serial Communication	Maximum Serial Transmission Speed	115.2 Kbps
Serial Communication	Repeater Maximum Distance	1.2 Kilometers
Serial Communication	Serial Port Connector Type	Terminal block
Serial Communication	Serial Port Number	1
Serial Communication	Serial Standard	RS-422 / RS-485
Environment	Temperature (Operating Range)	-40 ~ 80°C (-40 ~ 176°F)
Accessory General	Mounting	Panel, DIN
