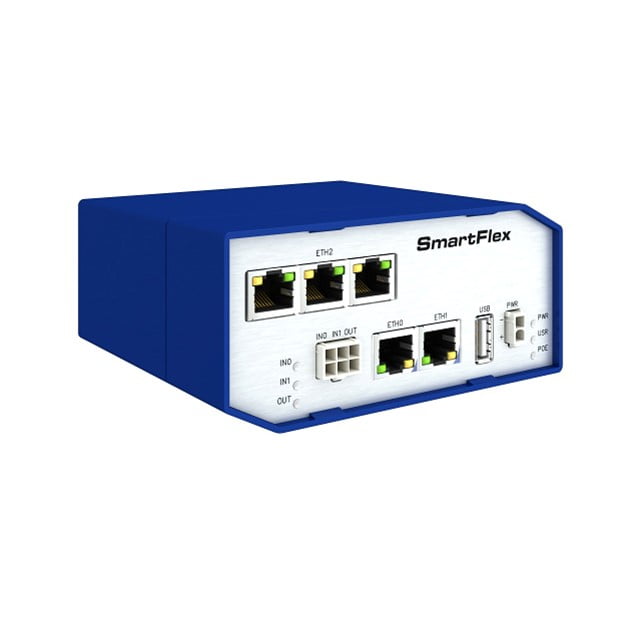

Advantech SmartFlex, Global, 5x ETH, Plastic, No ACC (BB-SR30000110)
- Global
- VPN, Multiple LAN/WAN configuration, DIN rail mounting
- Powerful CPU and Memory, Hosting of SW IoT applications
- 5x ETH
- USB, I/O 2x DI + 1x DO, MicroSD
- Advanced networking, Diagnostics, VPN support, Firewall
Deskripsi
| Category | Attribute | Value |
| Power | Power Supply | 10 to 60 V DC |
| Certifications | Carriers | – / – / – |
| CCC | – | |
| CE | Yes | |
| E8 | – | |
| FCC/IC | Yes | |
| KCC | – | |
| RCM | Yes | |
| UL 60950-1 | – | |
| UL C1D2/Atex | Yes | |
| UL MX CoC | – | |
| General | 3G/HSPA+ | – |
| GPRS/EDGE | – | |
| LTE cat.1 | – | |
| LTE cat.3 | – | |
| LTE cat.4 | – | |
| LTE450 | – | |
| Twin module | – | |
| Mechanical | Case | Plastic |
| Dimensions [mm] | 55 x 97 x 125 | |
| Weight | 170 | |
| Region | APAC | Yes |
| AUS/NZ | Yes | |
| China | – | |
| EMEA | Yes | |
| Global | Yes | |
| GSM-R | – | |
| Korea | – | |
| LATAM | Yes | |
| LTE450 | – | |
| NAM | Yes | |
| Port, LED, Anntena | Cellular Antennas | – |
| GPS Antenna | – | |
| LED Indicators | PWR, USR, POE, IN0, IN1, OUT, ETH | |
| MicroSD | Yes | |
| Mounting | DIN | |
| SIM slots | – | |
| WiFi Antennas | – | |
| WiFi / GPS / PoE | GPS | – |
| PoE PD | – | |
| PoE PSE | – | |
| WiFi 2.4 GHz / WiFi 2.4 GHz SMA | – / – | |
| WiFi 2.4/5 GHz | – | |
| Interfaces | DUST | – |
| ETH port(s) | 5 | |
| MBUS / WMBUS | – / – | |
| RS232 | – | |
| RS232 / RS485 / RS422 | – / – / – | |
| RS422 | – | |
| RS485 | – | |
| USB | Yes | |
| I/O ports | CNT (4x DI, 2x AI, 1x DO) | – |
| I/O 1x DI + 1x DO | – | |
| I/O 2x DI + 1x DO | Yes | |
| Enviroment | Humidity | 0 to 95 % |
| Operating Temperature | –40 °C to +75 °C | |
| Storage Temperature | –40 °C to +85 °C | |
| Cellular Module | CDMA Bands | – |
| GSM Bands | – | |
| LTE Bands | – | |
| UMTS Bands | – | |
| Power | Power Input (DC) | 10 ~ 60 VDC |
| Sleep Mode | Yes | |
| Interface | ETH Port(s) | 5 |
| I/O | 2 x DI + 1 x DO | |
| MicroSD | Yes | |
| USB | 1 | |
| Environment | Humidity (Operating Range) | 0~95% |
| Temperature (Operating Range) | -40 ~ 75°C (-40 ~ 167°F) | |
| Mechanism | Dimensions (W x H x D) | 125 x 55 x 97 mm |
| Enclosure (Plastic) | Yes | |
| Mounting (DIN-rail) | Yes | |
| Warranty | Warranty Period | 3 years |
| Region | Global | Yes |
| Packaging | Accessories | Without accessories |
Informasi Tambahan
| Brand | Advantech |
|---|
