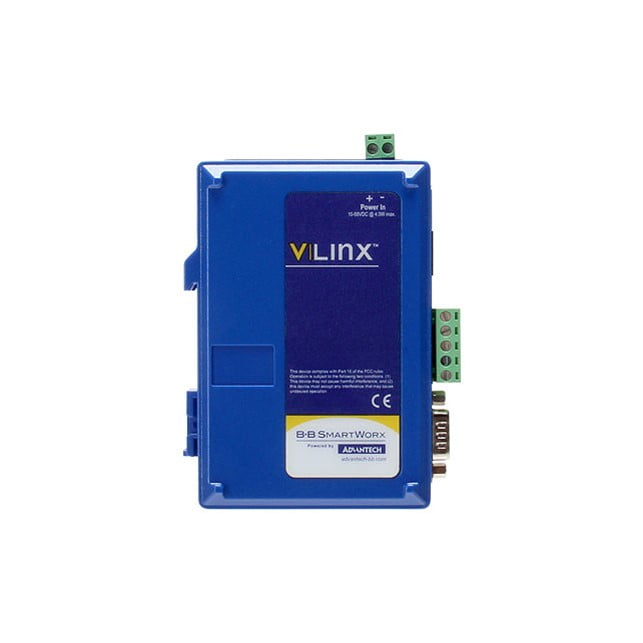

Advantech Serial Device Server, 2 x RS-232/422/485 TB, Ind. DIN
Deskripsi
SPESIFICATION
| Category | Attribute | Value |
| General | Ethernet Port Count | 1 |
| General | Mounting | DIN |
| General | Power | 10-48VDC |
| General | Serial Port Count | 1 |
| General | Serial Type | RS-232/422/485 |
| General | Technology | Serial |
| General | Temperature | -40 to 80C |
| Power | Power Consumption | 4W |
| Power | Power Input (DC) | 10 ~ 48 VDC |
| Serial Communication | Baud Rate | 50 ~ 230.4 Kbps |
| Serial Communication | RS-232 | Yes |
| Serial Communication | RS-422 | Yes |
| Serial Communication | RS-485 | Yes |
| Serial Communication | Serial Port Connector Type | DB9 & TB |
| Serial Communication | Serial Port Number | 1 |
| Serial Communication | Serial Transmission Speed | 230.4 kbps |
| Software | Configuration | Windows utility, Web Browser |
| Software | Driver | Windows XP/7/8.1/10, Windows Server 2008 |
| Software | Operation Mode | Virtual COM, TCP/UDP server TCP/UDP client |
| Environment | Humidity (Operating Range) | 0~95% |
| Environment | Temperature (Max. Operating) | 80°C (176°F) |
| Environment | Temperature (Min. Operating) | -40°C |
| Environment | Temperature (Operating Range) | -40 ~ 80°C (-40 ~ 176°F) |
| Mechanism | Dimensions (W x H x D) | 120 x 80 x 29 mm |
| Mechanism | Enclosure (Plastic) | Yes |
| Mechanism | IP Rating | IP30 |
| Mechanism | Mounting (DIN-rail) | Yes |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Port Number | 1 |
| Certification | EMC | CE, FCC |
| Certification | EMI | CE, FCC |
| Certification | EMS | CE / FCC |
| Certification | Safety | NO |
| Warranty | Warranty Period | 5 years |
Informasi Tambahan
| Brand | Advantech |
|---|
