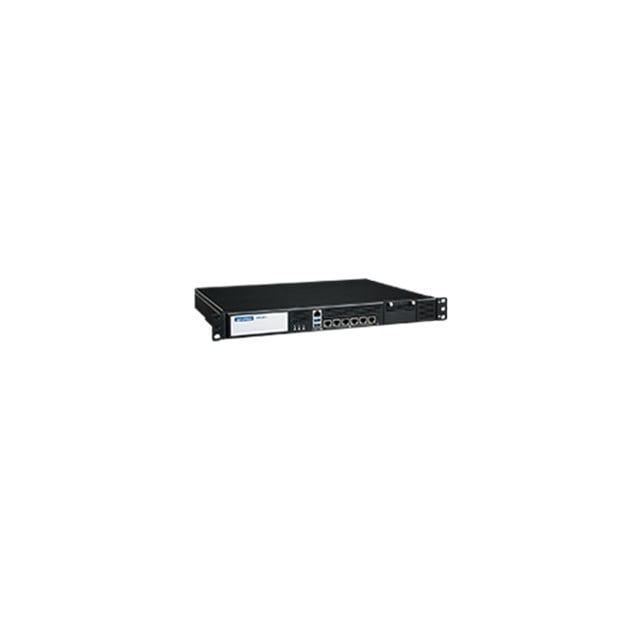

Advantech Network Appliance,FWA-2012 Atom C3758 (FWA-2012-8CA1S)
Deskripsi
| Category | Attribute | Value |
| I/O | Console port | 1 |
| I/O | LED Indicator | Power/Status/Location LED |
| I/O | Others | 1 x AC Power Switch |
| I/O | Reset button | Yes |
| I/O | USB3.0 | 2 |
| Memory | ECC Support | ECC or Non-ECC |
| Memory | Max. Capacity | 64GB |
| Memory | Socket | 2 x 288-pin DIMM |
| Memory | Technology | DDR4, 2133/2400MHz |
| Storage | 2.5″ HDD/SSD | Max. 2 x 2.5″ HDD/SSD |
| Storage | 2.5″ or 3.5″ HDD/SSD | 2 x 2.5″ HDD/SSD, 1 x 3.5″ HDD/SSD (option) |
| Storage | 3.5″ HDD | 1 x 3.5″ HDD |
| Storage | m.2 SSD | 2 x M.2 2280 |
| Environment | Non-operating Temperature | -40 ~ 60° C (-40 ~ 140° F) 5 ~ 95% |
| Power | Connector | AC 2pin plug |
| Power | Input | 100 V ~ 240 V |
| Power | Power Adaptor | AC PUS |
| Power | Power Type | AC |
| Power | Watts | 150W |
| Processor System | BIOS | AMI EFI 64 Mbit |
| Processor System | Chipset | Intel® Atom™ C3758 |
| Processor System | Core Number | 8C |
| Processor System | Frequency | 2.2GHz |
| Processor System | L2 Cache | 2MB/Core Pair |
| Processor System | Processor | Intel® Atom™ C3000 |
| Cooling | Cooling | 2 x system Fans |
| Certification | CE/FCC/CB/UL/CCC | |
| Expansion | NMC | 1 x NMC |
| Expansion | PCIex4 | N/A |
| Mechanical | Construction | Iron |
| Mechanical | Dimensions (W x H x D) | 430 x 44 x 320.7 mm (16.7″ x 1.7″ x 12.6″) |
| Mechanical | Mounting | 1U Rackmount |
| Mechanical | Weight | 6.6 kg (14.5 lbs) |
| Environment | Operating Temperature (air flow 0.7 m/sec) | 0 ~ 40 °C (32 ~ 104 °F) |
| Environment | Shock Protection | with SATA HDD: 10G, IEC-60068-2-27, half sine, 11ms duration |
| Environment | Vibration Resistance | with SSD: 0.3 Grms, IEC 60068-2-64, 5-500Hz, 1hr/axis |
| OS Support | Linux (CentOS, Red Hat, Ubuntu) | |
| IPMI | IPMI | NA |
| Virtualization | VT-x | VT-x, VT-d |
| Networking | 1GbE | 4 x 1GbE RJ45 via Marvell 1543 with 2 pairs LAN Bypass 2 x GbE RJ45 port via Intel i210 |
| Networking | Controller | 4 x Marvell 88E1543 2 x Intel i210 |
| Networking | LAN bypass Advanced | 2 x pair of LAN Bypass (default) |
| Networking | LAN bypass Legacy | – |
| TPM | TPM | 1.2 |
| Advantech S/W Packages | Individual Package | Advanced LBP Library |
| Advantech S/W Packages | QuickStart Linux Image | afru, ipmitool, lmsensors, LCD4Linux, Intel DPDK, Advanced LBP utility |
| LCD Module | LCD Module | 16 x 2 graphic display, 5 buttons |
Informasi Tambahan
| Brand | Advantech |
|---|
