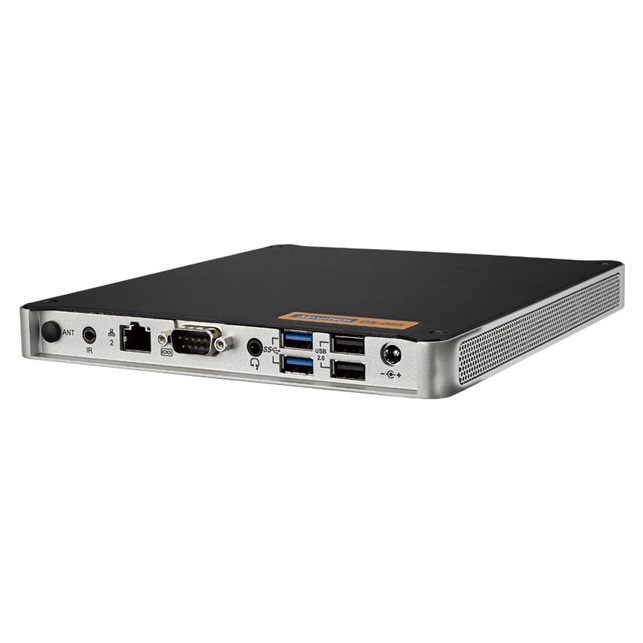

Advantech Large Barebone Digital Signage Player w/ Intel i3 (DS-085LGB-U3A1E)
Deskripsi
| Category | Attribute | Value |
| Display | Resolution | 3840 x 2160 |
| I/O | Audio | 1(SPDIF/ Line-out/ Mic-in), support Jack Sense |
| I/O | HDMI | 4 |
| I/O | LAN | 2 (RJ-45) |
| I/O | LED Indicators | 1 x Power, 1 x HDD Access |
| I/O | PSW | 1 x Power on/off button |
| I/O | Serial port | 2 x RS-232 |
| Memory | Max. Capacity | 32GB (16GB per SODIMM) |
| Memory | Socket | 2 x 260-pin SO-DIMM |
| Memory | Technology | DDR4 2666MHz |
| Processor | BIOS | AMI UEFI 128 Mbit |
| Processor | Chipset | Integrated in SOC |
| Processor | CPU | Intel Core i3-1115G4E |
| Storage | M.2 | M.2 2242 M Key |
| Operating System | Ubuntu | V |
| Environment | Operational Temperature | 0 ~ 55° C |
| Power | Input Voltage | 19 V DC-in (ATX/AT mode) |
| I/O Interface | USB2.0 | 2 |
| I/O Interface | USB3.0 | 2 |
| Environment | Relative Humidity | 95% @ 40° C (non-condensing), Operating |
| Watchdog Timer | Interval | 255-level timer interval, setup by software |
| Watchdog Timer | Output | Interrupt, system reset |
| Power Requirement | Management | ACPI 3.0 |
| Software Development Kit | Linux | by Project support |
| Software Development Kit | Operating System | Supports Win7 x64/x86, Win8.1 x64, Win10 x64 |
| Software Development Kit | Signage Software | WISE-PaaS/RMM & WebAccess/IMM |
| Certification | EMC | CE, FCC Class B, CCC, BSMI |
| Certification | Safety Certifications | UL, CB, CCC, BSMI |
| Physical Characteristics | Dimensions(W x D x H) | 180 x 190 x 19 mm |
| Physical Characteristics | Mounting | VESA/Desk/Wall/Din Rail |
| Physical Characteristics | Weight | 0.87 kg (1.92 lb) |
| Thermal Solution | Thermal Solution | FANLESS |
Informasi Tambahan
| Brand | Advantech |
|---|
