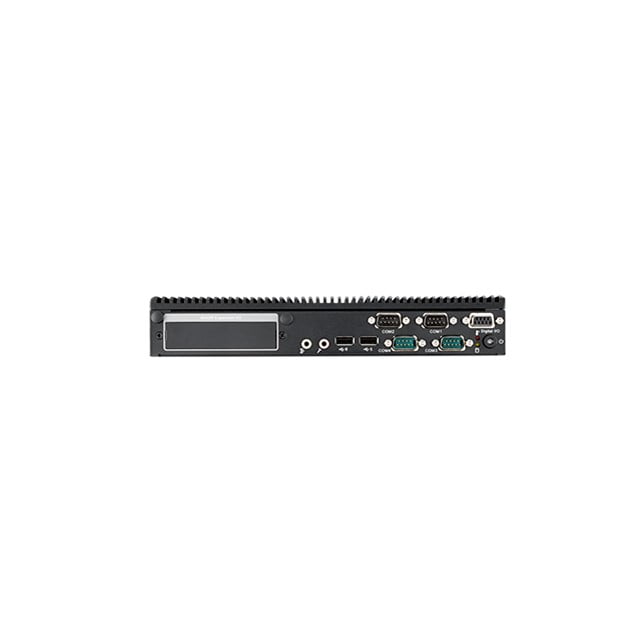

Advantech Intel Atom E3940 F1 1.6GHz VGA HDMI 4COM (ARK-2232L-S6A2)
Deskripsi
SPESIFICATION
| Category | Attribute | Value |
| I/O | Digital I/O | 8bit programmable general purpose input/output |
| I/O | Serial port | 2 x RS-232 ports, 2 x RS-232/422/485 port with auto flow control |
| I/O | USB | 2 x USB 3.0, 4 x USB 2.0 |
| Memory | Max. Capacity | 8 GB |
| Memory | Socket | 1 x 204-pin SO-DIMM |
| Memory | Technology | DDR3L 1866 MHz |
| Processor | BIOS | AMI EFI 64 Mbit |
| Processor | Core Number | 4 |
| Processor | CPU | Intel Atom E3940 Quad Core Soc |
| Processor | Frequency | 1.6 GHz, turbo burst 1.8GHz |
| Processor | L2 Cache | 2 MB |
| Storage | HDD | Supports one SATA 2.5″ HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s) |
| Storage | mSATA | 1 x full size mSATA socket (share with miniPCIe) |
| Environment | Operational Temperature | With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow, With 2.5-inch hard disk 0 ~ 40 °C (32 ~ 104 °F) with 0.7m/s air flow |
| Environment | Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Power | Consumption | Typical 7.98 W, Max. 19.76 W |
| Power | Input Voltage | 12 VDC (9 ~ 36 VDC as option) |
| Power | Power Adaptor | AC to DC, DC12V/5A, 60 W (Optional) |
| Power | Power Type | AT/ATX |
| Ethernet | LAN1 | 10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN |
| Ethernet | LAN2 | 10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN |
| Graphics | Chipset | Intel® HD Graphics 500 |
| Graphics | Dual Display | Yes, VGA + HDMI |
| Graphics | Graphic Engine | 4K Codec Decode& Encode for H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG |
| Graphics | HDMI | HDMI 1.4b for HD video playback, 3840 x 2160 at 30Hz |
| Graphics | VGA | Up to 1920 x 1200 at 60 Hz |
| Audio | Interface | Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
| Environment | Relative Humidity | 95% @ 40° C (non-condensing) |
| Environment | Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| Environment | Vibration during Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Certification | EMC | CE/FCC Class B, CCC, BSMI |
| Certification | Safety Certifications | UL, CCC, BSMI, CB |
| Expansion | M.2 | 1 x M.2 2230 E Key |
| Expansion | Mini PCIe | 1 x full size Mini PCIe with SIM holder |
| Mechanical | Construction | Aluminum housing |
| Mechanical | Dimensions | 260 x 44 x 140.2 mm (10.24″ x 1.73″ x 5.52″) |
| Mechanical | Mounting | Din-Rail mounting, Desk/wall-mounting, VESA mounting |
| Mechanical | Weight | Net Weight: 1.9kg (4.19 lbs); Gross Weight: 2.9kg (6.39 lbs) |
| Others | Watchdog timer | 255 levels timer interval, setup by software |
| Software Support | Linux | Support by project |
| Software Support | Microsoft Windows | Windows 10 |
Informasi Tambahan
| Brand | Advantech |
|---|
