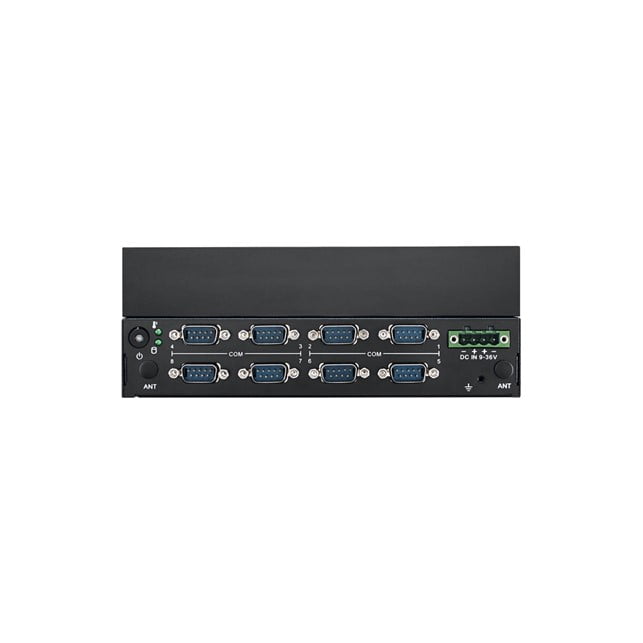

Advantech High Performance Fanless Embedded Computer, Supports Intel® 8th and 9th Gen Core™ i3/i5/i7/i9 35W processor (ARK-3531-00A1)
Deskripsi
SPESIFICATION
| Category | Attribute | Value |
| I/O | GPIO | 16-bit |
| Memory | Max. Capacity | 64 GB |
| Memory | Socket | 2 x 260-pin SO-DIMM |
| Memory | Technology | DDR4 2133MHz |
| Processor | BIOS | AMI UEFI 128 Mbit |
| Processor | Chipset | H370 (Q370 support by TPN) |
| Processor | Core Number | 8/6/4/2/2 |
| Processor | CPU | i7-9700TE/ i5-9500TE/ i3-9100TE/ G5400T /G4900T |
| Processor | CPU TDP | 35 W |
| Processor | Frequency | 1.8GHz-3.8GHz/ 2.2GHz-3.6GHz /2.2GHz-3.2GHz/ 3.1GHz /2.9GHz |
| Processor | L3 Cache | 12MB /9MB /6MB /4MB /2MB |
| Storage | HDD | 2 x 2.5″ SATAIII HDD Bay with Max Height 15mm (Support Up to 4 x 2.5″ SATAIII HDD Bay by Optional AMK-A0028E) |
| Storage | mSATA | 1 x full size mSATA socket (share with miniPCIe) |
| Operating System | Ubuntu | V |
| Environment | Operating Temperature | 35W Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow |
| Environment | Storage Temperature | -40 ~ 85° C |
| Power | Input Voltage | 9-36V |
| Power | Power Adaptor | AC to DC, 150W (Optional) |
| Power | Power Consumption | Typical 34.8W, Max 16.8W (CPU/Memory only) |
| Power | Power Type | AT / ATX |
| Ethernet | LAN1 | 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan |
| Ethernet | LAN2/LAN3/LAN4 | 10/100/1000 Mbps Intel I210 GbE, support Wake On Lan |
| Graphics | Chipset | Intel® HD Graphics 630 |
| Graphics | Flexible Display (by TPN project) | HDMI+HDMI,VGA+DP,HDMI+DP |
| Graphics | Graphic Engine | Direct x 12, OpenGL 4.4, HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8, HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9 |
| Graphics | VGA | 1920×1200@ 60Hz |
| Audio | Interface | Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
| I/O Interface | USB | 2 x USB 3.1 Gen2 (5V/1.8A), 6 x USB 3.0 (5V/0.9A) |
| Environment | Relative Humidity | 95% @ 40° C (non-condensing) |
| Environment | Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| Environment | Vibration during Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Certification | EMC | CE/FCC Class B, CCC, BSMI |
| Certification | Safety Certifications | CB, UL, CCC, BSMI |
| Expansion | M.2 | 1 x M.2 2230 E key for WIFI module |
| Expansion | Mini PCIe | 1 x Full-size MiniPCIe (support mSATA and SIM holder, optional AMO-I026 to support m.2 B+M key 2280 kit) |
| Mechanical | Construction | Aluminum housing |
| Mechanical | Dimensions | 200 x 75 x 215 mm |
| Mechanical | Mounting | Desk mounting |
| Mechanical | Weight | 3.2 Kg |
| Others | TPM | TPM 2.0 (Optional by project support) |
| Others | Watchdog timer | 255 levels timer interval, setup by software |
| Software Support | Microsoft Windows | Windows 10 |
Informasi Tambahan
| Brand | Advantech |
|---|
