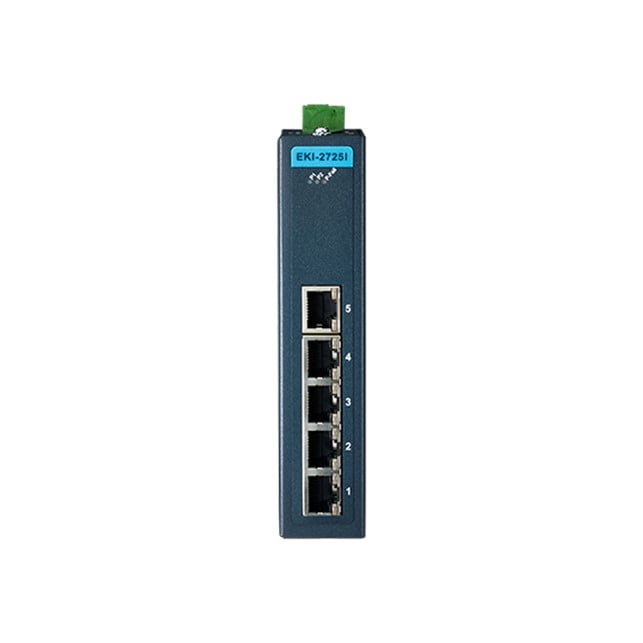

Advantech ETHERNET DEVICE, 5-port Ind. Unmanaged GbE Switch W/T (EKI-2725I-CE)
- Provides 5 Gigabit Ethernet ports with Auto MDI/MDI-X
- Supports 10/100/1000 Mbps Auto Negotiation
- Supports jumbo frame transmission up to 9kbytes
- Provides Slim size, DIN-rail with IP30 metal mechanism
- Supports Redundant 12 ~ 48 VDC power input and P-Fail Relay
- Provides broadcast storm protection
Deskripsi
| Category | Attribute | Value |
| Power | Power Connector Type | 6-pin removable screw terminal |
| Power Consumption | Max 2.5W | |
| Power Input (AC) | – | |
| Power Input (Battery) | – | |
| Power Input (DC) | 12 ~ 48 VDC | |
| Power Input (PoE) | – | |
| Redundant Dual Inputs | Yes | |
| Protection | Overload Current | Present |
| Reverse Polarity | Present | |
| Environment | Temperature (Max. Operating) | 75°C (167°F) |
| Temperature (Min. Operating) | -40°C (-40°F) | |
| Temperature (Operating Range) | -40 ~ 75°C (-40 ~ 167°F) | |
| Temperature (Storage Range) | -40 ~ 85°C (-40 ~ 185°F) | |
| Mechanism | Dimensions (W x H x D) | 30 x 140 x 95 mm (1.18′ x 5.51′ x 3.74 in.) |
| Enclosure (Plastic) | – | |
| IP Rating | IP30 | |
| Mounting (DIN-rail) | Yes | |
| Mounting (Panel) | – | |
| Mounting (Pole Mount) | – | |
| Mounting (Rack Mount) | – | |
| Mounting (Stack) | – | |
| Mounting (Wall) | Yes | |
| Ethernet Communication | Fiber Port Connector Type | – |
| Fiber Port Interface | – | |
| Fiber Port Number | – | |
| Fiber Transmission Distance | – | |
| Fiber Transmission Speed | – | |
| RJ-45 Port Connector Type | RJ-45 | |
| RJ-45 Port Number | 5 | |
| RJ-45 Transmission Distance | 100 m | |
| RJ-45 Transmission Speed | 10/100/1000 Mbps | |
| Certification | EMI | CE, FCC Class A |
| EMS | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) | |
| Safety | UL 60950-1 | |
| Warranty | Warranty Period | 5 years |
| PoE Information | PoE Budget | – |
| PoE Output | – | |
| PoE Port Number | – | |
| Support PoE | No |
