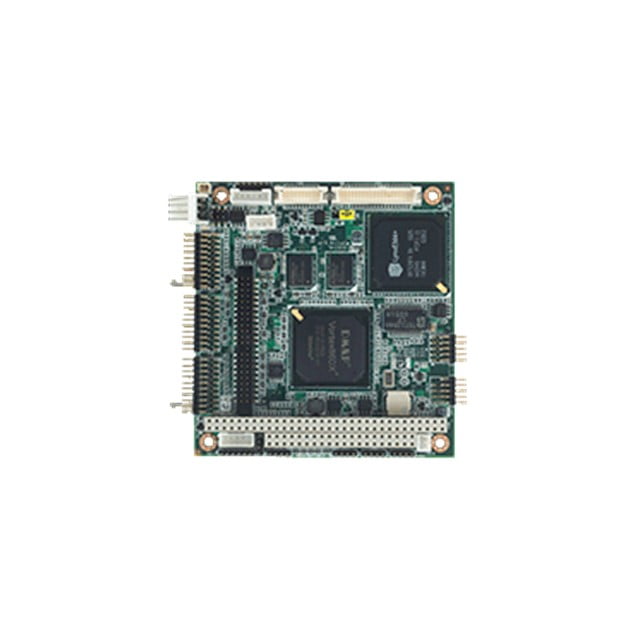

Advantech DM&P Vortex86DX-800MHz PC/104 CPU Module with LCD,LAN,CFC (Advantech)
Harga hubungi kami
Deskripsi
| Category | Attribute | Value |
| Display | Graphic Engine | 62.5 MHz single clock/cycle engine (EM+)/- 86 MHz single clock/cycle engine (EM4+) Designed to accelerate DirectDraw |
| Display | Graphic Memory | 4 MB internal memory/- |
| Display | LCD (TTL/LVDS/eDP) | LVDS:24-bit up to 1024 x 768/- TTL: single channel 24 bits up to 1024 x 768 |
| Display | Multiple Display | Dual/- |
| Display | VGA | up to 1024 x 768 at 85 Hz/- |
| Form Factor | Form Factor | PC/104 |
| I/O | COM Port | 4 (3 x RS232, 1 x RS232/ 422/ 485)/2 (1 x RS232, 1 x RS232/ 422/ 485)/2 (1 x RS232, 1 x RS232/ 422/ 485) |
| I/O | GPIO | 1 |
| I/O | Keypad | 1 |
| I/O | SPI Bus | Optional onboard 4 MB SPI Flash Disk (Supported by request for boot device or storage on DOS OS) |
| I/O | USB2.0 | 4,2 |
| Memory | Max. Capacity | 512MB |
| Memory | Onboard Memory | Onboard 256 MB (512 MB supported by request) |
| Memory | Technology | DDR2 333 MHz SDRAM on board |
| Processor | BIOS | Award integrated 16 Mbit ROM in SOC |
| Processor | CPU | DM&P Vortex86DX 800 MHz, supports Floating Point Unit (FPU) |
| Processor | Frequency | 800MHz |
| Processor | L2 Cache | 256KB |
| Storage | CompactFlash | 1 |
| Storage | IDE | 1 |
| Operating System | Linux | Yes |
| Operating System | Microsoft Windows | Yes |
| Environment | Non-Operational Temperature | -40° C ~ 85° C and 60° C @ 95% RH non-condensing |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 85% RH non-condensing) |
| Power | Battery | 3 V/210 mAH |
| Power | Power Consumption (Full Load) | 0.85 A @ +5 V, 4.25 Watt (Vortex86DX 1 GHz, DDR2 256 MB) |
| Power | Power Consumption (Idle) | 0.74 @ +5 V, 3.7 Watt (Vortex86DX 1 GHz, DDR2 256 MB) |
| Power | Power Supply Voltage | 5V ± 5% only to boot up (12 V is optional for LCD inverter and add-on card) |
| Power | Power Type | AT |
| Ethernet | Connector | Pin Header |
| Ethernet | Controller | GbE1: Vortex86DX SOC integrated GbE2: Realtek RTL8100C-LF |
| Ethernet | Speed | 10/100 Mbps |
| Watchdog Timer | WatchDog Timer | Yes |
| Certification | EMC | CE, FCC |
| Expansion | I2C Bus | 1 |
| Expansion | PC/104 | 1 |
| Physical | Dimension (mm) | 96 x 90 mm (3.8″ x 3.5″) |
| Physical | Weight | 0.508 kg (1.12 lb) |
Informasi Tambahan
| Brand | Advantech |
|---|
