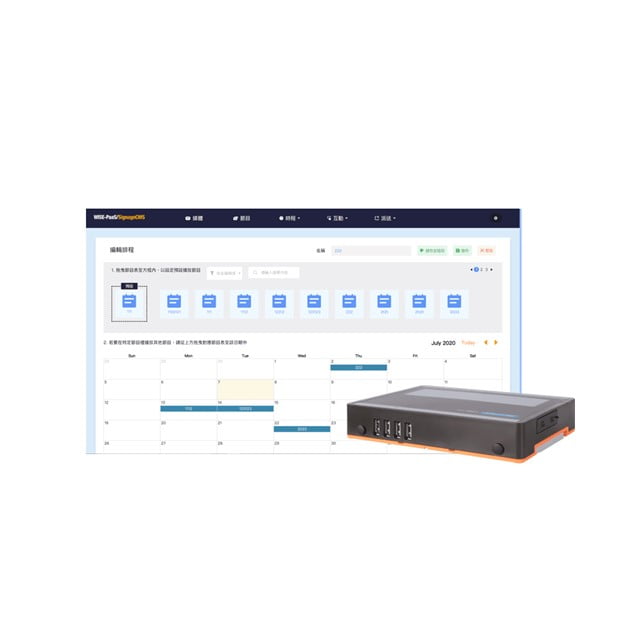

Advantech CortexA17,2G/16G,Android6,SignageClient (USM-110UDS1-G1E-C)
Deskripsi
| Category | Attribute | Value |
| Processor System | CPU | Arm® Cortex®-A17 |
| Processor System | GPU | Mali-T764 |
| Processor System | Graphics Engine | OpenGL ES 1.1/2.0/3.0, OpenCL 1.1, DirectX 11 |
| Processor System | OS | Android 6.0 |
| Processor System | RAM | 2 GB onboard DDR3L (1333 MHz ) |
| Processor System | Storage | 8GB / 16GB onboard eMMC |
| Display | Max. Resolution | 1 x default 4K (3840 x 2160) ; 1 x optional FHD (1920 x 1080) |
| Power Supply | Input Voltage | 12V/3A |
| I/O Interface | Audio | 1 x Audio Phone Jack |
| I/O Interface | Ethernet | 1 x RJ-45 Gigabit Ethernet (10/100/1000) |
| I/O Interface | Extendable Slot | 1 x Mirco SD, 1 x M.2, 1 x Mini PCIe (optional) |
| I/O Interface | Others | 1 x DC IN |
| I/O Interface | Output | 2 x HDMI |
| I/O Interface | Serial Port | 1 x COM (RS232/485/422 by jumper) |
| I/O Interface | USB Port | 2 x USB2.0, 1 x OTG USB / 4 x USB2.0, 1 x OTG USB |
| Dimensions | Dimensions | 156 x 112 x 28 mm |
| Operating Temperature | External Power | 0 ~ 40° C |
| LED | LED Indicators | 1 x Power, 1 x Wireless |
| Weight (kg) | Weight (kg) | 0.43 kg |
| VESA Mounting Patterns | VESA Mounting Patterns | 75 x 75 mm |
| Enviroment | Operating Humidity | 90% @ 40°C non-condensing |
| Enviroment | Storage Temperature | -40 ~ 85° C |
Informasi Tambahan
| Brand | Advantech |
|---|
