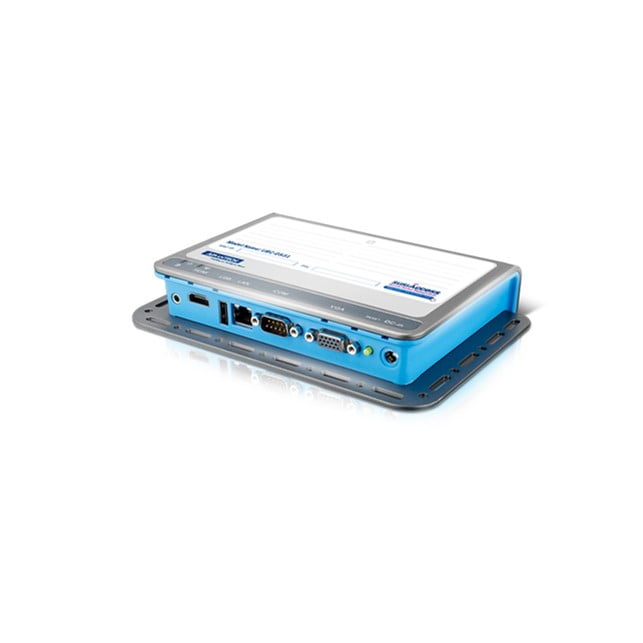

Advantech COMPUTER SYSTEM, RISC Digital signage player with SUSIAccess (UBC-DS31CD-MDA1E)

SKU: UBC-DS31CD-MDA1E Kategori: Advantech, ARM/RISC Solutions, Boards & Cards, IoT / Industrial Tag: advantech

Deskripsi

Category	Attribute	Value
Display	Graphic Engine	2 IPUs. OpenGL ES 2.0 for 3D, BitBlt for 2D and OpenVG 1.1
Display	H/W Video Codec	Decoder: MPEG-4 ASP, H.264 HP, H.263, MPEG-2 MP, MJPEG BP Encoder: MPEG-4 SP, H.264 BP, H.263, MJPEG BP
Display	HDMI	1x
Display	VGA	1x
I/O	Audio	1x line out
I/O	Reset Button	1
I/O	SDIO	1 SD card slot
I/O	Serial port	1x RS232 ( CTS,RTS,Tx, Rx)
I/O	SPDIF	N/A
I/O	USB	1x
Memory	Capacity	On-board DDR3 1 GB
Memory	Flash	4 GB eMMC for O.S. and 4 MB NOR Flash for Advantech boot loader
Memory	Technology	DDR3 1066 MHz
Processor	CPU	Freescale i.MX6 Dual Cortex-A9 1GHz
Operating System	Linux	Linux 3.0.35
Operating System	Others	SUSIAccess for Signage
Environment	Humidity	5%~95% Relative Humidity, non-condensing
Environment	Operational Temperature	0~40°C
Power	Power Consumption (Full Load)	2.9 Watts
Power	Power Supply Voltage	12Vdc
Power	Power Type	DC-in
Ethernet	Chipset	Freescale i.MX6 integrated RGMII
Ethernet	Speed	1 10/100/1000 Mbps
Watchdog Timer	WatchDog Timer	Yes
Certification	EMC	CE, FCC Class B
Expansion	SD Socket	1x SD slot
Physical	Dimension (mm)	191x129x30 mm with metal plate 166x117x30mm without metal plate
Physical	Mounting	Wall mount, VESA 75/100, Flexible mount with two screw holes on the metal plate
Physical	Weight	265g
RTC	RTC	Yes
Indicator	LED	2 Green LED for the system power and RF status
