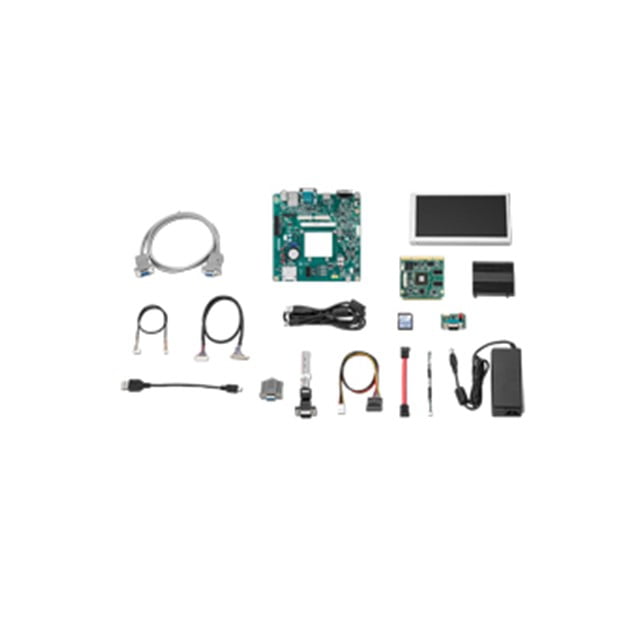

Advantech CIRCUIT BOARD, ROM-7421 Qseven 2.0 Development Kit (ROM-DK7421-F0A1E)
Deskripsi
| Category | Attribute | Value |
| Display | Graphic Engine | 2 IPUs. OpenGL ES 2.0 for 3D, BitBlt for 2D and OpenVG 1.1 |
| Display | H/W Video Codec | Decoder: MPEG-4 ASP, H.264 HP, H.263, MPEG-2 MP, MJPEG BP Encoder: MPEG-4 SP, H.264 BP, H.263, MJPEG BP |
| Display | HDMI | 1920 x 1080 |
| Display | LVDS | 2 24-bit LVDS, 1024 x 768 |
| Form Factor | Form Factor | Q7 |
| I/O | Audio | HD Audio with I 2 S |
| I/O | CAN | 1x |
| I/O | GPIO | 8-bit GPIO |
| I/O | I2C Bus | 2x |
| I/O | PCIe | 1 PCIe 1 Lan |
| I/O | SATA | 1 SATA II |
| I/O | SDIO | 4-bit SDIO |
| I/O | Serial port | 2 x RS-232 |
| I/O | SPI Bus | 2 SPI |
| I/O | USB | 4 x USB 2.0 |
| Memory | Capacity | 1 GB (max. capacity as 2 GB) |
| Memory | Flash | 4 GB eMMC for O.S. and 4 MB NOR Flash for Advantech boot loader |
| Memory | Technology | DDR3 1066 MHz |
| Processor | CPU | NXP ARM® Cortex®-A9 i.MX6 Dual core |
| Operating System | Linux | Yocto Linux & Android |
| Environment | Operational Temperature | 0~60C |
| Power | Power Supply Voltage | 5V |
| Ethernet | Chipset | NXP i.MX6 integrated RMII |
| Watchdog Timer | WatchDog Timer | 256 Level timer interval, from 0~128 sec |
| Certification | EMC | CE/FCC Class B |
| Physical | Dimension (mm) | 70x70mm |
| RTC | RTC | Yes |
Informasi Tambahan
| Brand | Advantech |
|---|
