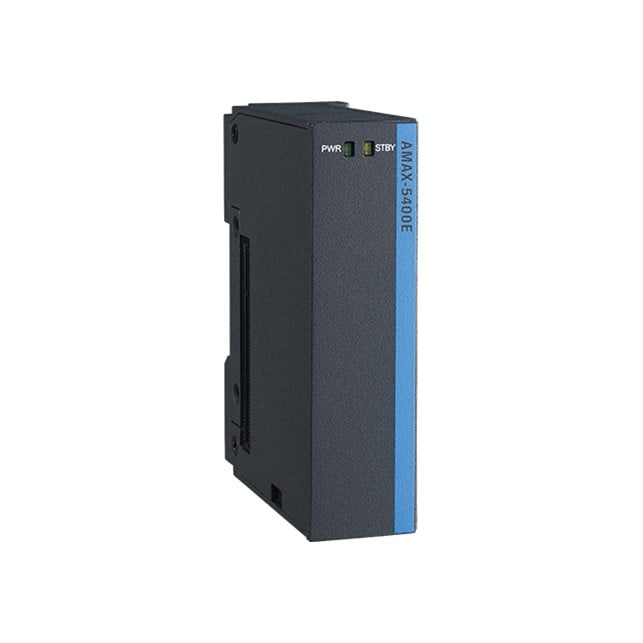

Advantech AMAX-5400E-A PCIe-mini card expansion module
- Interface: Full size mini PCI express 2.0
- SIM card slot: Nano SIM card
- Antenna: 1x SMA hole on the top
Deskripsi
| Category | Attribute | Value |
| General | Bus Interface | 1 x PCIe x1 |
| Hardware | Certification | CE, FCC class A |
| Hardware | LED Indicators | PWR, Standby |
| Hardware | Power Consumption | 0.5 W @ 24 VDC |
| Environment | Isolation Voltage | 2,500 VDC |
| Environment | Operating Temperature | -10~60 °C (14~140 °F) |
| Environment | Relative Humidity | 5~95% RH (non-condensing) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Expansion Function | Antenna | 1x SMA hole on the top |
| Expansion Function | Interface | 1 x Full-size mini PCIe 2.0 |
| Expansion Function | SIM card slot | Nano SIM card |
| Mechanical | Enclosure | Aluminum housing |
| Mechanical | Mounting | DIN-rail |
| Mechanical | Weight (Net) | 189 g |
Informasi Tambahan
| Brand | Advantech |
|---|
