Deskripsi
| Display | Controller | Integrated Intel® UHD Graphics 620 |
| Display | eDP* | Max resolution up to 4096 x 2304 at 60 Hz |
| Display | HDMI | 2 |
| Display | LVDS | – |
| Display | Multiple Display | Triple |

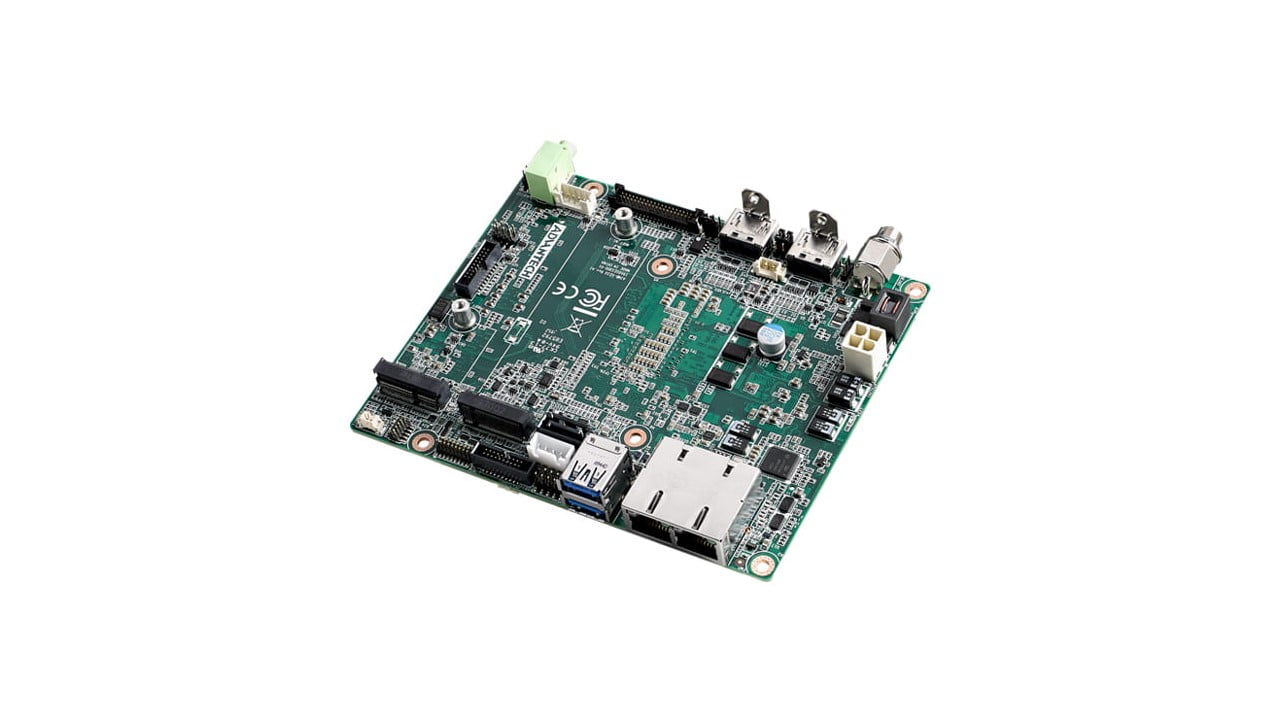

| Form Factor | Form Factor | UTX |
| I/O | COM Port | 4 (2 x RS-232, 2 x RS-232/422/485, selected by BIOS) |
| I/O | GPIO | 1, 16-bit GPIO |
| I/O | TPM | Optional |
| I/O | USB3.0/2.0 | 2/2 |
| Memory | Max. Capacity | 16 GB |
| Memory | Socket | 1 x 260-Pin SO-DIMM |
| Memory | Technology | DDR4 2400MHz SO-DIMM |
| Processor | BIOS | AMI 128 Mbit SPI |
| Processor | Core Number | 4 |
| Processor | CPU | Intel Core i3-8145UE |
| Processor | CPU TDP | 15 W |
| Processor | Frequency | 1.7 GHz |
| Processor | L2 Cache | 8 MB |
| Operating System | Ubuntu | V |
| Operating System | Windows 10 | V |
| Environment | Non-Operational Temperature | -40~ 85° C |
| Environment | Operational Temperature | 0 ~ 60° C w/ 0.7m/s airflow |
| Environment | Vibration Resistance | 3.5 Grms (non OP) |
| Power | Connector | DC Jack |
| Power | Power Type | ATX, AT |
| Ethernet | Connector | RJ45*2 |
| Ethernet | Controller | LAN1: Intel i219LM / LAN2: Intel i211AT |
| Ethernet | Speed | 10/ 100/ 1000 Mbps |
| Audio | Audio Interface | HD Audio |
| Audio | CODEC | Realtek ALC888S, High Definition Audio (HD) |
| Audio | Connector | 1 (Line Out) |
| Watchdog Timer | WatchDog Timer | Yes |
| Expansion | M.2 | 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230mm) |
| Expansion | Slot Type | 3 |
| Physical | Construction | with fanless design |
| Physical | Dimension (mm) | 112x 137 mm (4.4″ x 5.3″) |
| Physical | Weight | 1.04 kg (1.72 lb), weight of total package |
Informasi Tambahan
| Brand | Advantech |
|---|
