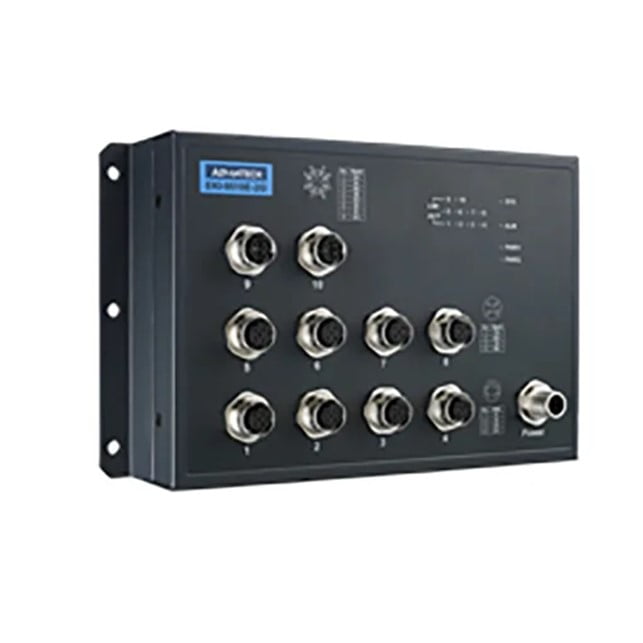

Advantech 8 x D-code+ 2 x X-code, unmanaged PoE M12 Ethernet Switch (EKI-9510E-2GPL-AE)

Deskripsi

Category	Attribute	Value
Power	Power Connector Type	M12 (4 pin A-coded)
Power	Power Consumption	10W (system)
Power	Power Input (DC)	24/ 28/ 36/ 48 VDC
Power	Power Operating Voltage	16.8 ~ 60 VDC
Power	Redundant Dual Inputs	Yes
Protection	Overload Current	Present
Protection	Reverse Polarity	Present
Environment	Relative Humidity	5~95%
Environment	Temperature (Operating Range)	-40 ~ 70°C (-40 ~ 158°F)
Environment	Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)
Mechanism	Dimensions (W x H x D)	216 x 59.3 x 132 mm
Mechanism	Enclosure (Metal)	Metal
Mechanism	IP Rating	IP40
Mechanism	Mounting (Wall)	Yes
Mechanism	Weight	3.7 kg
Ethernet Communication	Bypass Function (Pair)	1
Ethernet Communication	M12 D-code (10/100Base-T) Number	8
Ethernet Communication	M12 X-code (10/100/1000Base-T) Number	2
Switch Properties	Jumbo Frame	9,216 bytes
Switch Properties	MAC Table Size	8K
Switch Properties	Packet Buffer Size	4.1M bit
Switch Properties	Switch Fabric Speed	5.6Gbps
Certification	EMC	CE, EN55032/24, EMC DIRECTIVE 2014/30/EU
Certification	EMI	CISPR 32, FCC Part 15 Subpart B Class A
Certification	EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3)
Certification	Freefall	IEC 60068-2-31
Certification	Shock	IEC 61373
Certification	Vertical Market	EN50155, EN50121-3-2, EN61000-6-2
Certification	Vibration	IEC 61373
Warranty	Warranty Period	5 years
PoE Information	PoE Budget	60W
PoE Information	PoE Port Number	8
