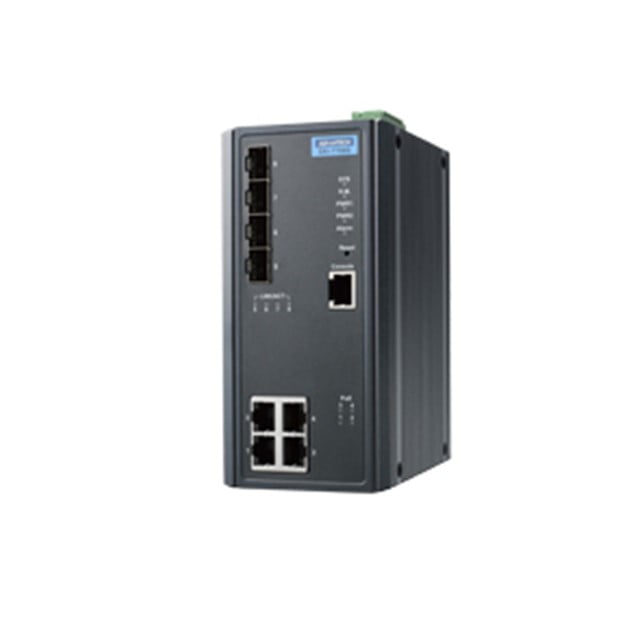

Advantech 4G+4SFP with POE -10 ~ 60? (EKI-7708G-4FP-AE)
Deskripsi
| Category | Attribute | Value |
| Power | Power Connector Type | 6-pin removable screw terminal (power & relay) |
| Power | Power Consumption | 12.1W (system) |
| Power | Power Input (DC) | 48 VDC |
| Power | Power Operating Current | 0.25A @ 48VDC (system) |
| Interface | Port Number | 8 |
| Environment | Relative Humidity | 10~95% |
| Environment | Temperature (Operating Range) | -10 ~ 60°C (14 ~ 140°F) |
| Environment | Temperature (Storage Range) | -40 ~ 85°C (-40 ~ 185°F) |
| Mechanism | Dimensions (W x H x D) | 74 x 152 x 105 mm (2.91 x 5.98 x 4.13) |
| Mechanism | Enclosure (Metal) | Metal shell |
| Mechanism | IP Rating | IP30 |
| Mechanism | Mounting | DIN-rail, Wall |
| Mechanism | Weight | 1.1 kg |
| Ethernet Communication | Fiber Transmission Distance | Up to 110 km |
| Ethernet Communication | RJ-45 Port Connector Type | 4 x RJ-45 + 4 x SFP ports |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps |
| Switch Properties | Jumbo Frame | 9,216 bytes |
| Switch Properties | MAC Table Size | 8K |
| Switch Properties | Packet Buffer Size | 4.1M bit |
| Switch Properties | Switch Fabric Speed | 16Gbps |
| Certification | EMC | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), EN 50121-4, NEMA TS2 |
| Certification | EMI | CE, FCC Class A |
| Certification | Ethernet Standard | IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w, 802.3af/at |
| Certification | Freefall | IEC 60068-2-32 |
| Certification | Shock | IEC 60068-2-27 |
| Certification | Vibration | IEC 60068-2-6 |
| MTBF | Method | Telcordia, GB |
| MTBF | Time | TBD |
| Warranty | Warranty Period | 5 years |
| PoE Information | PoE Port Number | 4 |
