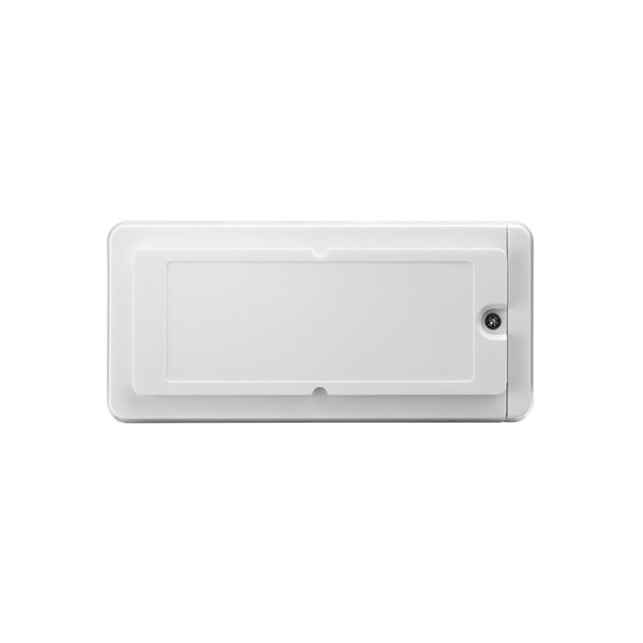

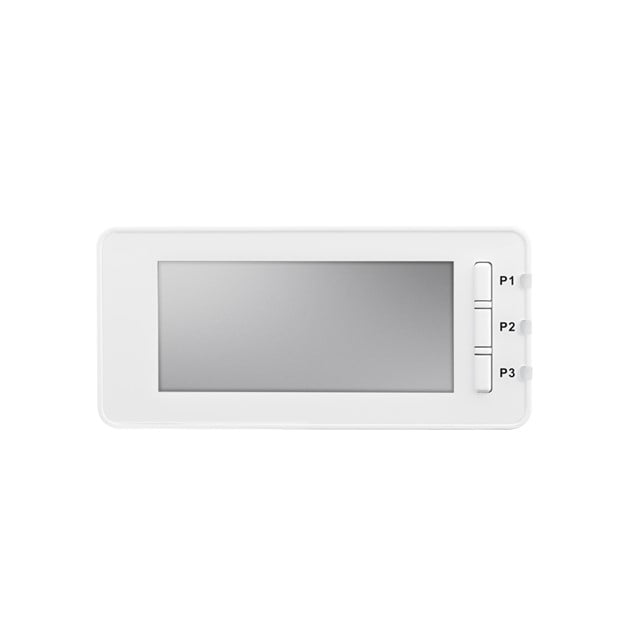

Advantech 2.9″ Wireless ePaper display solution (EPD-023B2AG-NTC02)
- ARM Cortex-M3 Core Processor
- Supported IEEE 802.15.4 / 2.4 G networks
- 2.9″ ePaper panel display
- Great for Low Consumption, up to 3 years life time
- Rich I/O control with 3 button & 3 LED
- Supported temperature 0 ~ 50 °C
Deskripsi
| Category | Attribute | Value |
| Display | Resolution | 296 x128 pixels |
| Size | 2.9″ (79 x 36.7 mm) | |
| I/O | Button | 3 |
| Processor | Flash | 512 KB |
| MCU | TI ARM Cortex-M4 Processor | |
| RAM | 28 KB | |
| Operating System | Others | RTOS |
| Environment | Operating Humidity | 5~80% Relative humidity, non-condensing |
| Operating Temperature | 0 ~ 50° C (32 ~ 122° F) | |
| Power | Battery | CR2450 x4 |
| Certification | EMC | UL/CB Safty |
| RF | CE/FCC/NCC | |
| Mechanical | Dimensions | 36.7×85.6 mm |
| Indicator | LED | 3 |
| Wireless | Antenna connector | MHF4 connector |
| Channels | 16 | |
| Frequency | 2.4 GHz | |
| Function | End node | |
| RF Data Rate | Up to 250 Kbps | |
| Standard | IEEE 802.15.4 |
Informasi Tambahan
| Brand | Advantech |
|---|
