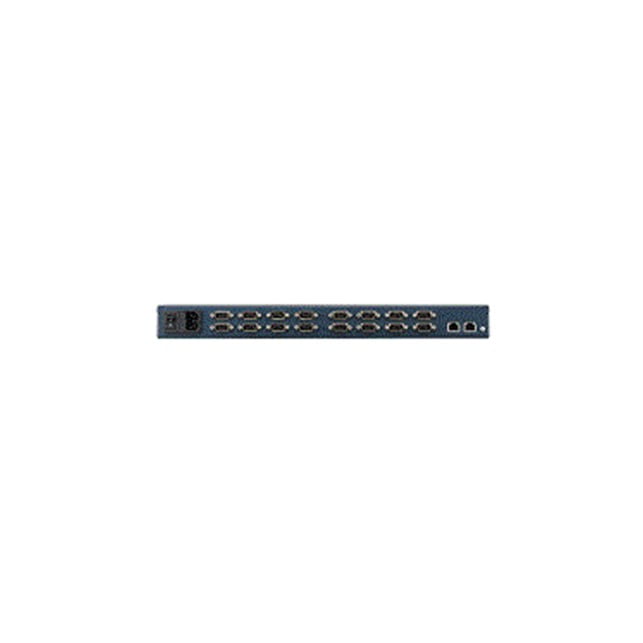

Advantech 16-port RS-232/422/485 Serial Device Server Wide Temperature
Deskripsi
SPESIFICATION
| Category | Attribute | Value |
| Power | Power Consumption | 5.6W |
| Power | Power Input (AC) | 100 ~ 240 VAC |
| Power | Power Operating Current | 0.3A @ 110 VAC ; 0.2A @ 220 VAC |
| Protection | Port to Port Isolation | – |
| Protection | Reverse Polarity | Present |
| Serial Communication | Baud Rate | 50 ~ 921.6 Kbps |
| Serial Communication | RS-232 | Yes |
| Serial Communication | RS-422 | Yes |
| Serial Communication | RS-485 | Yes |
| Serial Communication | Serial Port Connector Type | DB9 |
| Serial Communication | Serial Port Number | 16 |
| Serial Communication | Serial Transmission Speed | 50 ~ 921.6 Kbps |
| Software | Configuration | Windows utility, Telnet console, Web Browser |
| Software | Driver | Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux |
| Software | Operation Mode | Virtual COM, TCP/UDP server TCP/UDP client |
| Environment | Humidity (Operating Range) | 10~95% RH |
| Environment | Temperature (Max. Operating) | 70°C (158°F) |
| Environment | Temperature (Min. Operating) | -40°C |
| Environment | Temperature (Operating Range) | -40 ~ 70°C (-40 ~ 158°F) |
| Environment | Temperature (Storage Range) | -40 ~ 85°C (-40 ~ 185°F) |
| Mechanism | Dimensions (W x H x D) | 438 x 43.6 x 259.2 mm (17.24 x 1.71 x 10.2 in.) |
| Mechanism | IP Rating | IP30 |
| Mechanism | Weight | 3.1 kg |
| Ethernet Communication | Ethernet Standard | IEEE 802.3, 802.3u, 802.3ab |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Port Number | 2 |
| Certification | EMC | CE, FCC |
| Certification | EMI | EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A |
| Certification | EMS | EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024 |
| Certification | Freefall | IEC 60068-2-32 |
| Certification | Safety | UL 60950-1, UL 62368 |
| Certification | Vibration | IEC 60068-2-6 |
| Warranty | Warranty Period | 5 years |
Informasi Tambahan
| Brand | Advantech |
|---|
