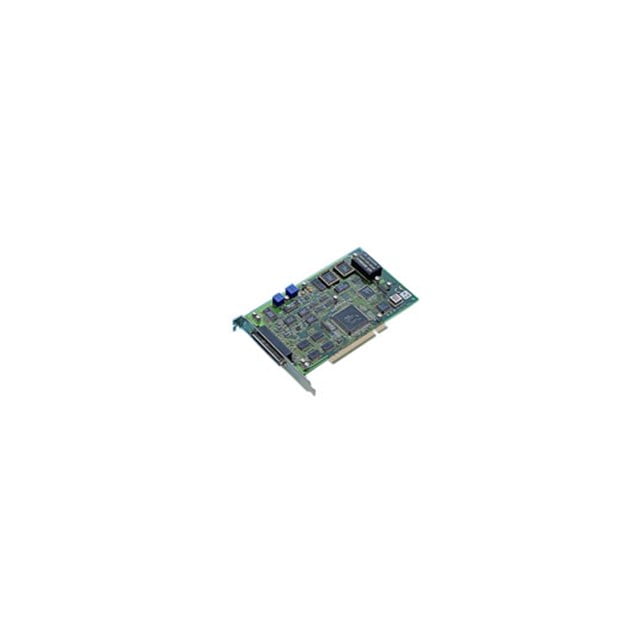

Advantech 12-bit Multifunction Universal PCI Card w/o AO (PCI-1711UL-CE)
Deskripsi
| Category | Attribute | Value |
| Analog Input | Channels | 16 |
| Analog Input | Input Range | ±0.625 V ±1.25 V, ±2.5 V, ±5 V, ±10 V |
| Analog Input | Resolution(Bits) | 12-bit |
| Analog Input | Sampling Rates(S/s) | 100 KS/s (sum) |
| General | Programming Language | C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt |
| Counter/Encoder Input | Channels | 2 |
| Counter/Encoder Input | Counting Range | 16-bit |
| Digital Input | Channels | 16 (TTL) |
| Digital Output | Channels | 16 (TTL) |
Informasi Tambahan
| Brand | Advantech |
|---|
