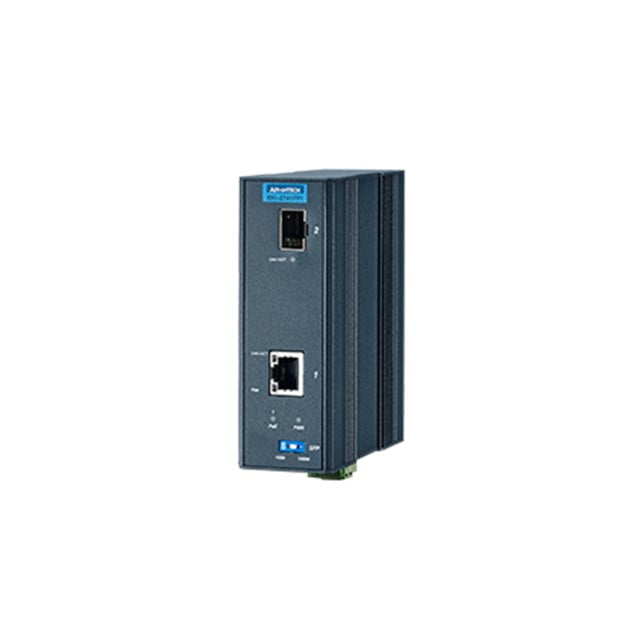

Advantech 1 Port GbE PoE to SFP Fiber Media Converter

Deskripsi

	Category	Attribute	Value
Power	Power Connector Type	2-pin removable screw terminal
Power	Power Consumption	34W
Power	Power Operating Current	0.07A @48Vdc(system)
Environment	Relative Humidity	10~95%
Environment	Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Environment	Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)
Mechanism	Dimensions (W x H x D)	36.7 x 108.4 x 103.5 mm
Mechanism	Enclosure (Metal)	Metal
Mechanism	IP Rating	IP31
Mechanism	Mounting	DIN-rail, Wall
Mechanism	Weight	0.45 kg (1.0 lb)
Ethernet Communication	Fiber Transmission Distance	Up to 110 km
Ethernet Communication	RJ-45 Transmission Distance	100 m
Switch Properties	Jumbo Frame	10K bytes
Switch Properties	Switch Fabric Speed	1.0Gbps
Certification	EMC	CE, FCC
Certification	EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Certification	Ethernet Standard	IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3af/at
Certification	Freefall	IEC 60068-2-32
Certification	Safety	UL508, Class 1 Division 2
Certification	Shock	IEC 60068-2-27
Certification	Vibration	IEC 60068-2-6
MTBF	Method	Telcordia(Relax), GB
MTBF	Time	743,594 hours
Warranty	Warranty Period	5 years
PoE Information	PoE Port Number	1
