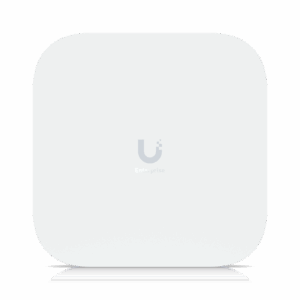

Access Point E7 Campus Unifi

• Device: 250 x 250 x 45.5 mm
  (9.8 x 9.8 x 1.8″)
• Articulating mount: Ø104 x 149.4 (Ø4.1 x 5.9″)

• Pro mounting plate (Included)
• VESA mount

• IPX6
• IP67 with Waterproof Door Kit (Included)

• 6 GHz : 4 x 4 (DL/UL MU-MIMO)
• 5 GHz : 4 x 4 (DL/UL MU-MIMO)
• 2.4 GHz : 2 x 2 (DL/UL MU-MIMO)

• 6 GHz : 11.5 Gbps (BW320)
• 5 GHz : 8.6 Gbps (BW240)
• 2.4 GHz : 688 Mbps (BW40)

• 6 GHz : 12 dBi
• 5 GHz : 12 dBi
• 2.4 GHz : 5 dBi

• 6 GHz : 30 dBm (36 dBm EIRP)
• 5 GHz : 30 dBm
• 2.4 GHz : 23 dBm

• 802.11be (WiFi 7) : 7.3 Mbps to 11.4 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
• 802.11ax (WiFi 6) : 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
• 802.11ac (WiFi 5) : 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
• 802.11n : 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)

• Custom Branding Landing Page ✓
• Voucher Authentication ✓
• Payment-Based Authentication ✓
• External Portal Server Support ✓
• Password Authentication ✓
• Guest Network Isolation ✓

• (1) 10 GbE RJ45 port
• (1) 1 GbE RJ45 port

• Device: 2.2 kg (4.9 lb)
• With articulating mount: 3.1 kg (6.8 lb)

• 2400 – 2472 MHz
• U-NII-1: 5150 – 5250 MHz
• U-NII-2A: 5250 – 5350 MHz
• U-NII-2C: 5470 – 5725 MHz
• U-NII-3: 5725 – 5850 MHz
• U-NII-5 to U-NII-8 : 5925 – 7125 MHz

Worldwide:

• 2400 – 2483.5 MHz
• 5150 – 5725 MHz
• 5925 – 7125 MHz
